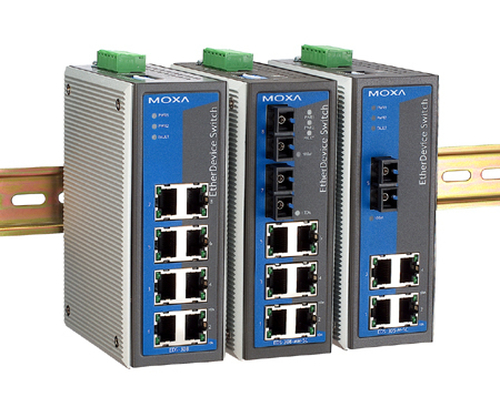

Moxa EtherDevice™ Switch EDS-308, 2 x multi, SC connector Unmanaged

Product code: 39134
  • Moxa EtherDevice™ Switch EDS-308
  • 2 x multi
  • SC connector
  • Unmanaged

Moxa EtherDevice™ Switch EDS-308, 2 x multi, SC connector Unmanaged

Product code Alt: 39134
Moxa EtherDevice™ Switch EDS-308, 2 x multi, SC connector Unmanaged

Product Description

The EDS-308/305 series includes 8, and 5 port Ethernet switches that provide an economical solution for your industrial Ethernet connection, and the built-in relay warning function alerts maintainers when power failures or port breaks occur.

These switches have been designed for harsh industrial environments, such as in hazardous locations (Class 1 Div. 2/Zone 2) that comply with FCC, TÜV, UL, and CE standards. EDS-308/305 series includes 2 models: one with an operating temperature range of 0 to 60°C, and the other one with extended 0perating temperature range of -40 to 75°C. These 2 models pass through a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control.

Features:

High Performance Network Switching Technology
-10/100BaseT(X) (RJ45), 100BaseFX (SC/ST connector, Multi/Single mode).
-Broadcast storm protection.
-IEEE802.3/ 802.3u/ 802.3x.
-Store and Forward switching process type.
-10/100M, Full/Half-Duplex, MDI/MDI-X auto-sensing.
Industrial-grade Reliability
-Power failure, port break alarm by relay output.
-Redundant dual DC power inputs.
Rugged Design
-Operating temperature ranges from 0 to 60°C, or extended operating temperature from -40 to 75°C.
-IP30, rugged high-strength metal case.
-DIN-Rail or panel mounting ability.
-Long-haul transmit distance of 40 km or 80 km.
-Designed for hazardous location (Class 1 Div. 2/Zone 2) (pending).
Recommended Accessories
-DR Series DIN-Rail 24 VDC Power Supplies.

Features

  • Relay output warning for power failure and port break alarm
  • Broadcast storm protection
  • -40 to 75°C operating temperature range (-T models)
    •

    Specifications

    Ports & interfaces
    Basic switching RJ-45 Ethernet ports quantity
    8
    Management features
    Switch type
    Unmanaged
    Power over Ethernet (PoE)
    Power over Ethernet (PoE)
    No
