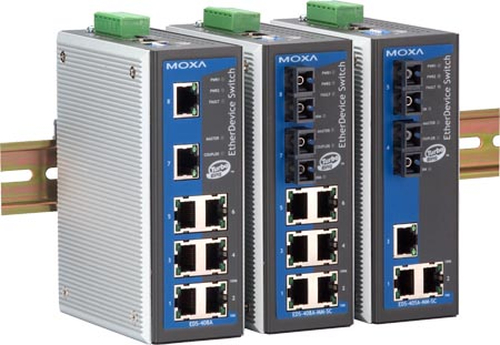

Moxa EtherDevice™ Switch EDS-408A, (-40 to 75°C) Managed

Product code: 41560
  • Moxa EtherDevice™ Switch EDS-408A
  • (-40 to 75°C)
  • Managed

Moxa EtherDevice™ Switch EDS-408A, (-40 to 75°C) Managed

Product code Alt: 41560
Moxa EtherDevice™ Switch EDS-408A, (-40 to 75°C) Managed

Product Description

EDS-408A/405A series switches are entry-level 8- and 5-port managed Ethernet switches that are designed especially for industrial applications. The switches support many different management
functions, such as Turbo Ring, ring coupling, VLAN, QoS, RMON, bandwidth management, port mirroring, and warning by email or relay. The ready-to-use Turbo Ring can be set up easily using a web-based management interface, or simply by using the default settings, which are plug-and-play.

Industrial Networking Capability
-Plug-n-Play, Turbo Ring (recovery time < 20 ms at full load) and RSTP/STP (IEEE802.1 W/D) capability
-Port-based VLAN to ease network planning
-QoS-IEEE 802.1p/1Q and TOS/DiffServ to increase determinism
-RMON for efficient network monitoring and proactive capability
-SNMP V1/V2c/V3 for different levels of network management security
Designed for Industrial Applications
-Bandwidth management prevents unpredictable network status
-ABC-01 (Automatic Backup Configurator) for system configuration backup
-Port mirroring for online debugging
-Automatic recovery of connected device's IP addresses
-Line-swap fast recovery (Patented)
-Redundant, dual DC power inputs
-Regular (0 to 60°C) and extended (-40 to 75°C) operating temperature models available
-IP30, rugged high-strength case
-Long-haul transmit distance of 40 km
-DIN-Rail or panel mounting capability
-Configurable by Web browser, Telnet/Serial console, Windows utility
-Ping commands to identify network segment integrity
Recommended Software and Accessories
- ABC-01 RS-232 RJ45-based Automatic Backup Configurator
- EDS-SNMP OPC Server Pro
- DR series DIN-Rail 24 VDC power supplies

Features

  • Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and RSTP/STP for network redundancy
  • IGMP Snooping, QoS, IEEE 802.1Q VLAN, and port-based VLAN supported
  • Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
  • PROFINET or EtherNet/IP enabled by default (PN or EIP models)
  • Supports MXstudio for easy, visualized industrial network management
    •

    Specifications

    Ports & interfaces
    Basic switching RJ-45 Ethernet ports quantity
    8
    Management features
    Switch type
    Managed
    Power over Ethernet (PoE)
    Power over Ethernet (PoE)
    No
