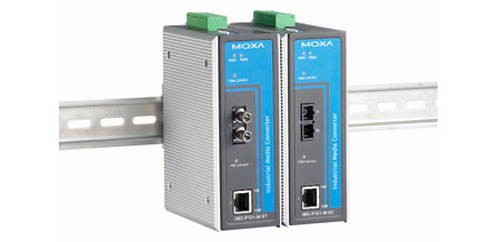

Moxa IMC-P101-S-ST network media converter 100 Mbit/s 1310 nm Single-mode Blue, Grey

Product code: 44963
  • Moxa IMC-P101-S-ST
  • 100 Mbit/s
  • 100Base-TX
  • 10Base-T
  • 100Base-FX
  • IEEE 802.3
  • IEEE 802.3af
  • IEEE 802.3u
  • Fast Ethernet
  • 10,100 Mbit/s

Moxa IMC-P101-S-ST network media converter 100 Mbit/s 1310 nm Single-mode Blue, Grey

Product code Alt: 44963
Moxa IMC-P101-S-ST network media converter 100 Mbit/s 1310 nm Single-mode Blue, Grey

Product Description

IMC-P101 series Ethernet-to-fiber media converters provide Ethernet media conversion from 10/100BaseT(X) to 100BaseFX (with SC or ST connectors). The converters are classified as power source equipment (PSE), and when used in this way provide up to 15.4 watts to IEEE 802.3af compliant powered devices (PDs), eliminating the need for additional wiring. The IMC-P101 converters support IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, and MDI/MDI-X auto-sensing, providing a complete solution for your industrial Ethernet network.

- 10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X
- IEEE 802.3af compliant PoE
- Power failure alarm by relay output
- Store-and-Forward mode and Cut Through mode
- 40 to 75°C operating temperature range (T models)
- Redundant dual DC power inputs

Features

  • 10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X
  • IEEE 802.3af-compliant PoE PSE equipment
  • Power failure alarm by relay output
  • Supports store-and-forward mode and pass-through mode
  • -40 to 75°C operating temperature range (-T models)
  • Redundant dual DC power inputs
    •

    Specifications

    Ports & interfaces
    Fiber optic connector
    ST
    Network
    Maximum data transfer rate
    100 Mbit/s
    Performance
    Maximum transfer distance
    40000 m
    Wavelength
    1310 nm
    Features
    Internal
    No
