Moxa Managed SHDSL Ethernet extenders Network repeater Black

Product code: 46174
  • Moxa Managed SHDSL Ethernet extenders
  • Network repeater
  • 8000 m
  • 15.3 Mbit/s
  • 1310000 h
  • 10/100Base-T(X)
  • IEEE 802.1p
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x

Moxa Managed SHDSL Ethernet extenders Network repeater Black

Product code Alt: 46174
Moxa Managed SHDSL Ethernet extenders Network repeater Black

Product Description

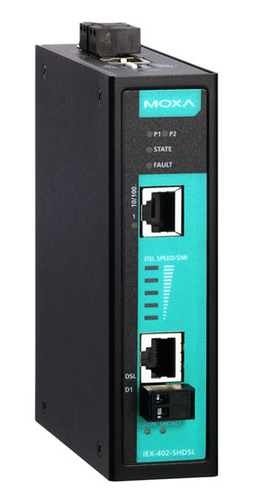

The IEX-402-SHDSL is an entry-level industrial managed Ethernet extender designed with one 10/100BaseT(X) and one DSL port. The Ethernet extender provides a point-to-point extension over twisted copper wires based on the G.SHDSL.bis standard. The device supports a data rate of up to 15.3 Mbps and a long transmission distance of up to 8 km.
The IEX-402-SHDSL series is designed for use in harsh operating environments. The DIN-rail mount, wide operating temperature range (-40 to 75°C), and dual power input make it ideal for installation in industrial applications.
To simplify configuration, the IEX-402-SHDSL uses CO/CPE auto negotiation. By factory default, the device will automatically assign CPE status to one of each pair of IEX devices. In addition, Link Fault Pass-through (LFP) and network redundancy interoperability enhance the reliability and accessibility of communication networks. Advanced managed and monitored functionality through MXview, including a virtual panel, improve the user experience for quick trouble shooting.

Features

  • Automatic CO/CPE negotiation reduces configuration time
  • Link Fault Pass-Through (LFPT) support and interoperable with Turbo Ring and Turbo Chain
  • LED indicators to simplify troubleshooting
  • Easy network management by web browser, Telnet/serial console, Windows utility, ABC-01, and MXview
    •

    Specifications

    Design
    Product colour
    Black
    Performance
    Type
    Network repeater
    Maximum transfer distance
    8000 m
