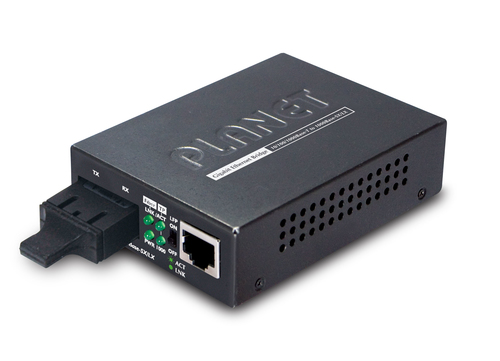

PLANET GT-802S network media converter 1000 Mbit/s 1310 nm Black

Product code: GT-802S
  • PLANET GT-802S
  • 1000 Mbit/s
  • 1000Base-T
  • 1000Base-LX
  • IEEE 802.3
  • IEEE 802.3ab
  • IEEE 802.3u
  • IEEE 802.3z
  • Gigabit Ethernet
  • 10,100,1000 Mbit/s

PLANET GT-802S network media converter 1000 Mbit/s 1310 nm Black

Product code Alt: GT-802S
PLANET GT-802S network media converter 1000 Mbit/s 1310 nm Black

Product Description

Providing the flexibility of 10/100/1000Mbps Ethernet Media via RJ45 port and highly stable Gigabit fiber performance, PLANET GT-802, GT-802S, GT-802S40, GT-806S60, GT-805A and GT-806A/B media converters support conversion between 10/100/1000BASE-T and 1000BASE-SX/LX networks. There are SC/SFP/WDM connectors with single-mode or multi-mode media as required. The Ethernet signal allows three types of segments to connect easily, efficiently and inexpensively.


Distance Extension with High Performance and Steady Network Communications

PLANET GT-80x gigabit media converter series extends communication distance with highly Gigabit performance via fiber optic cable. The GT-80x series provides media conversion between 10/100/1000BASE-T and 1000BASE-SX/LX interfaces for various fiber optic applications.


Enhanced Smart Management Features

The GT-80x series provides auto MDI/MDI-X on its TP port and the DIP switch to configure the Link Fault Passthrough function (LFP). The LFP function includes the Link Loss Carry Forward (LLCF)/Link Loss Return (LLR). LLCF/LLR can immediately alarm administrators the problem of the link media and provide efficient solution to monitoring the network. The DIP switch can disable or enable the LFP function.

- LLCF means when a device connected to the converter and the TP line loses the link, the converter’s fiber will disconnect the link of transmission.
- LLR (Link Loss Return) means when a device connected to the converter and the fiber line loses the link, the converter’s fiber will disconnect the link of transmission.

Both can immediately alarm administrators the problem of the link media and provide efficient solution to monitoring the network.


Easy Installation

The GT-80x series allows two types of the segment to connect easily. The GT-80x series can be used as a standalone unit when powered by its DC adapter or used as a slide-in module to PLANET 19-inch 7-/15-slot media converter chassis (MC-700/MC-1500/ MC-1500R/MC-1500R48). These media chassis can assist in producing the power for the GT-80x to maintain the fiber-optic network at one location. As the Gigabit Media Converter fully complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T and IEEE 802.3z 1000BASE-LX/SX, the Gigabit media conversion installation is quite quick and easy with its Plug and Play feature. The GT-80x also supports flow control and back pressure in half-duplex mode to eliminate packet loss.

Features

  • Complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3z 1000BASE-SX/LX
  • TP port supports 10/100/1000BASE-T auto-negotiation and auto-MDI/MDI-X
  • 1000BASE-SX: 50/125µm or 62.5/125µm multi-mode fiber cable, up to 220/550m (GT-802)
  • 1000BASE-LX: 9/125µm single-mode cable provides a distance of 10km (GT-802S)
  • 1000BASE-LX: 9/125µm single-mode cable provides a distance of 40km (GT-802S40)
  • 1000BASE-LX: 9/125µm single-mode cable provides a distance of 60km (GT-802S60)
  • 1000BASE-SX/LX: 50/125µm/62.5/125µm multi-mode fiber cable or 9/125µm single-mode cable provides a distance depending on SFP module (GT-805A)
  • 1000BASE-LX WDM interface is for up to 15km (single-mode fiber 9µm/125µm) on GT-806A15/GT-806B15
  • 1000BASE-LX WDM interface is for up to 40km (single-mode fiber 9µm/125µm) on GT-806A40/GT-806B40
  • 1000BASE-LX WDM interface is for up to 60km (single-mode fiber 9µm/125µm) on GT-806A60/GT-806B60
  • 1000BASE-T: 2-pair Cat. 5/5e/6 UTP cable, up to 100 meters
  • Layer 2 key features
  • IEEE 802.3x flow control for full duplex and back pressure for half duplex eliminate the loss of packets
  • Supports auto MDI/MDI-X function
  • Store-and-Forward mechanism
  • Non-blocking full wire-speed forwarding rate
  • Media conversion between 10/100/1000BASE-T and 1000BASE-SX/LX
  • Fiber media allows
  • Multi-mode fiber using SC/LC/WDM connector
  • Single-mode fiber using SC/LC/WDM connector
  • Compact size for working with PLANET MC family media chassis (MC-700/MC-1500/MC-1500R/MC-1500R48)
  • Wall-mountable design
  • LED indicators for easy network diagnostics
  • Provides DIP switch for LFP function (Disable/Enable) setting
  • 9K jumbo frame supported
  • Choice of fiber connectors from SC, LC and WDM; multi-mode/single-mode fiber for 1000BASE SFP interface
  • Compact in size, easy installation
    •

    Specifications

    Ports & interfaces
    Fiber optic connector
    SC
    Network
    Maximum data transfer rate
    1000 Mbit/s
    Performance
    Maximum transfer distance
    100000 m
    Wavelength
    1310 nm
    Features
    Internal
    No
