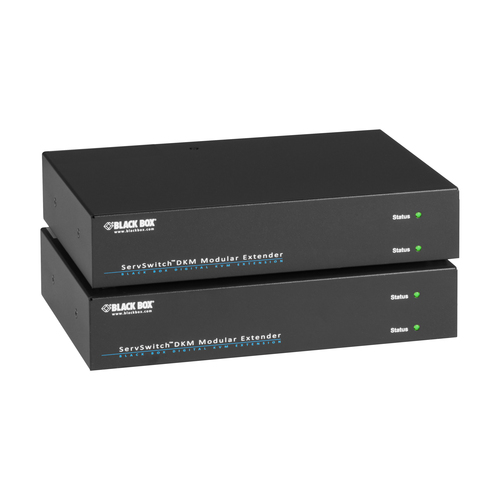

Black Box AMS9204A KVM extender Transmitter & Receiver

Product Description

This DKM FX Fiber Extender Kit is comprised of 2 modular housing chassis with 2 slots and transmitter and receiver interface cards. The DKM FX extender setup provides the widest range of possible combinations, which makes it easy to customize for your specific application. These DKM FX components are part of a modular system. You will need to contact Black Box to have them assembled to fit your application. To configure your DKM FX HD Video and Peripheral Matrix Switch setup, call our FREE Tech Support. Supports integrated DisplayPort digital audio. Audio format PCM can be transferred with a sample rate up to 96 Hz via the DisplayPort interface.


TypeTransmitter & receiver
Connectivity technologyWired
Maximum transfer distance10000 m
Maximum digital resolution4096 x 2160 pixels
Product colourBlack
CertificationCE, FCC, RoHS, UL, WEEE
LED indicatorsStatus
Transmitter video port typeDisplayPort
Transmitter local video port typeDisplayPort
Transmitter local keyboard/mouse port typeUSB
Receiver local video port typeDisplayPort
Receiver local keyboard/mouse port typeUSB
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (transmitter) (max)15 W
Power consumption (receiver) (max)15 W
Input current0.7 A
Operational conditions
Operating temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)20 - 90%
Technical details
Dimensions (WxDxH)222 x 146 x 43 mm

Black Box AMS9204A KVM extender Transmitter & Receiver

Product code: AMS9204A
£4,330.31 ex. VAT
43 in stock
