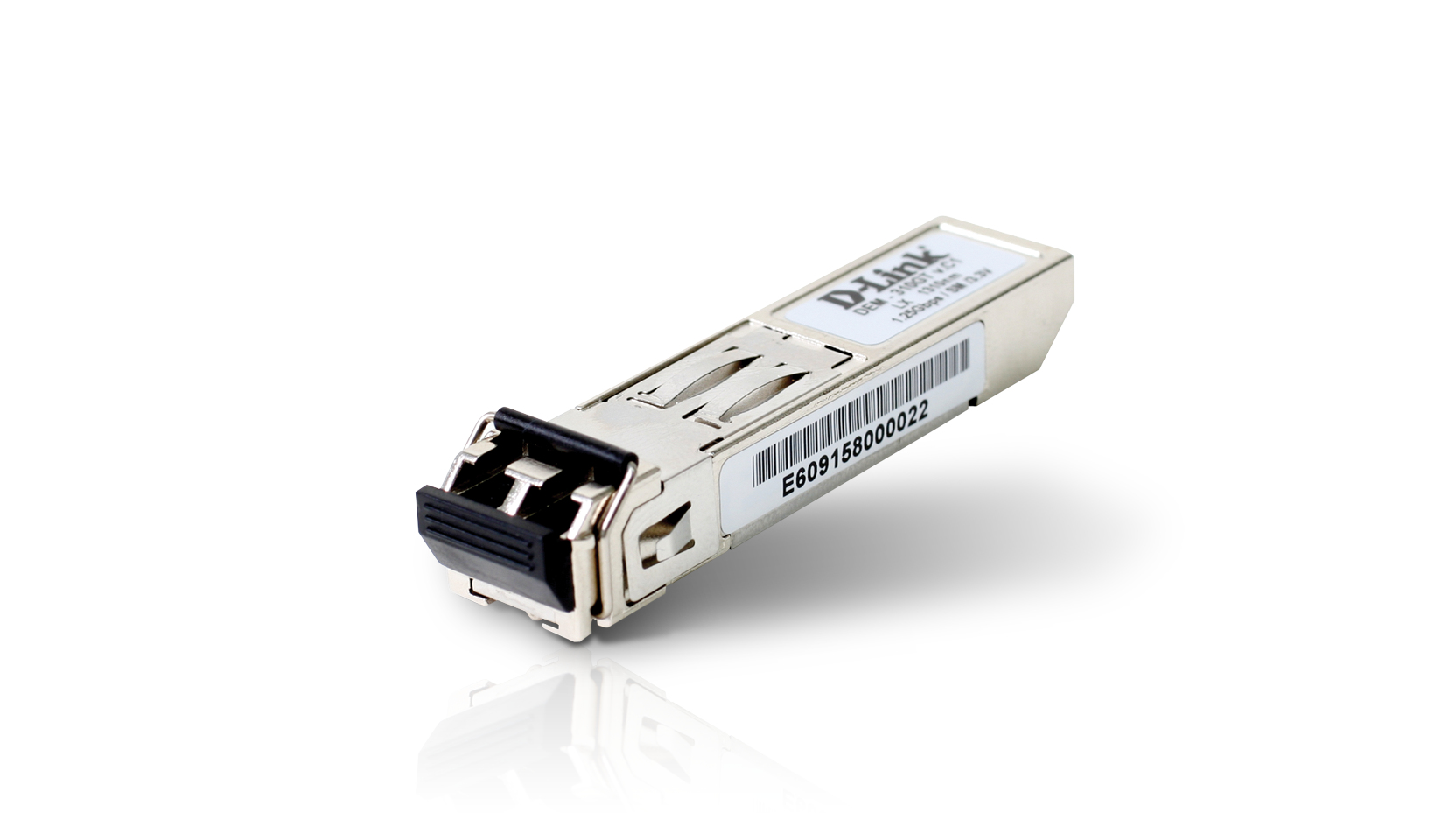

D-Link 1000Base-LX Mini Gigabit Interface Converter network switch component

Product Description

D-Link’s new line of Gigabit Interface Converters (GBICs) and Small Form-Factor Pluggables (SFPs) transceivers represent an industry leading combination of performance and affordability. D-Link’s new Gigabit transceivers are available in two form-factors: standard (GBIC) or (SFP)/mini-GBIC.
The DEM-310GT is a high performance 1310nm multimode/Singlemode SFP (mini-GBIC) transceiver. Supporting full duplex, Gigabit speeds on multimode/Singlemode fiber for distances of up to 550m/550m/10km on 62.5µm/50µm/9µm respectively. The unit features a metal housing to reduce EMI and to increase durability. The DEM-310GT is hot pluggable and is backed by a standard 3-year product warranty and free technical support.

Specifications

Features
Internal	Yes
Product colour	Stainless steel
Colour
Product colour	Stainless steel
Technical details
Internal	Yes
Compliance industry standards	802.3z
Technical features	Optical Receiver Sensitivity -20dBm
Shipping (inner) case width	26 cm
Shipping (inner) case net weight	3.2 kg
Shipping (inner) case length	36 cm
Shipping (inner) case height	31 cm
Shipping (inner) case gross weight	4.2 kg
Quantity per shipping (inner) case	50 pc(s)
Quantity per pallet (sea)	2700 pc(s)
Quantity per pallet (air)	2700 pc(s)
Pallet width	122 cm
Pallet length	102 cm
Pallet height (sea)	199 cm
Pallet height (air)	199 cm
Pallet gross weight (sea)	246.8 kg
Pallet gross weight (air)	246.8 kg
Package width	74 mm
Package weight	64 g
Package height	49 mm
Package depth	131 mm
Number of cartons per pallet (sea)	54
Number of cartons per pallet (air)	54
Network
Data transfer rate	1 Gbit/s
Data link protocols	Gigabit Ethernet
Cabling technology	1000Base-LX
Compliance industry standards	802.3z
Operational conditions
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	0 - 70 °C
Weight & dimensions
Dimensions (WxDxH)	29.8 x 11.8 x 56.3 mm
Ports & interfaces
I/O ports	mini-GBIC
