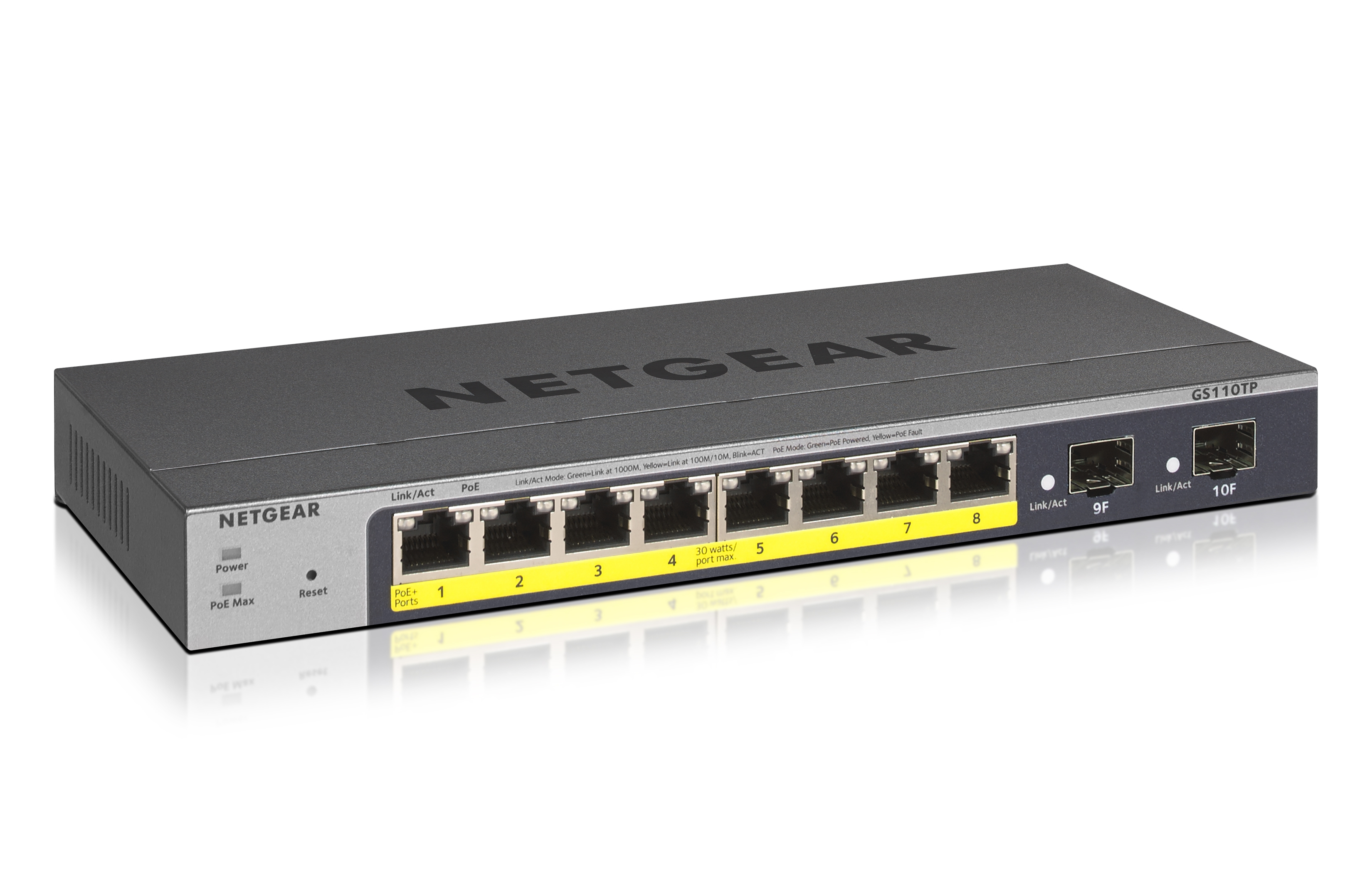

Netgear GS110TP Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Grey Power over Ethernet (PoE)



Product Description

The NETGEAR GS110TPv3 8-Port Gigabit PoE+ Ethernet Smart Managed Pro Switch comes with 8 PoE copper ports and 2 dedicated SFP ports for fiber uplinks. Cautious spender organizations can now deploy PoE devices with a reasonable PoE power budget of 55W. Each PoE port can provide up to 30 watts to power up the connected devices. Fanless, the GS110TPv3 supports perfectly silent desktop operation or wall mounting. The GS110TPv3 Smart Managed Pro Switch offers an easy-to-use, Web browser-based management GUI with configurable L2 network features like VLANs and PoE operation scheduling, allowing SMB customers to deploy PoE-based VoIP phones and IP surveillance. This switch also comes with NETGEAR Insight Cloud management activation (free for the first two devices) for anytime remote management and monitoring through an intuitive app or Cloud Portal. Advanced features such as IPv4 Layer 2+ static routing including IPv6 management, ACL, DiffServ QoS, LACP link aggregation and Spanning Tree will satisfy even the most advanced small business networks. The GS110TPv3 features Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings and is backed by NETGEAR’s Lifetime Limited Warranty and 24/7 support including lifetime chat.

Specifications

Management features
Multicast supportYes
ARP inspectionYes
Switch typeManaged
Web-based managementYes
Quality of Service (QoS) supportYes
Switch layerL2/L3/L4
Ports & interfaces
Copper ethernet cabling technology10BASE-T,100BASE-TX,1000BASE-T
SFP module slots quantity2
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Network
IGMP snoopingYes
IPv4 multicast entries32
Access Control List (ACL) IPv6 entries100
MAC address auto-learning supportedYes
Copper ethernet cabling technology10BASE-T,100BASE-TX,1000BASE-T
Networking standardsIEEE 802.3ab,IEEE 802.3af,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Full duplexYes
Spanning tree protocolYes
Rate limitingYes
Port mirroringYes
Number of VLANs64
Link aggregationYes
Flow control supportYes
Broadcast storm controlYes
Virtual LAN features
Number of VLANs64
Data transmission
Number of multicast groups filtered256
Number of VLANs64
Packet buffer memory0.5 MB
MAC address table8000 entries
Switching capacity20 Gbit/s
Store-and-forwardYes
Jumbo frames supportYes
IPv4 & IPv6 features
Access Control List (ACL) IPv6 entries100
Performance
Packet buffer memory0.5 MB
Processor frequency500 MHz
Memory typeRAM
Mean time between failures (MTBF)1200041 h
Internal memory128 MB
Flash memory32 MB
Technical details
Product colourGrey
Processor frequency500 MHz
Mean time between failures (MTBF)1200041 h
Security
Security algorithms802.1x RADIUS
MAC address filteringYes
IGMP snoopingYes
Access Control List (ACL)Yes
Access Control List (ACL) IPv6 entries100
DHCP featuresDHCP client
Multicast features
Number of multicast groups filtered256
Multicast supportYes
IPv4 multicast entries32
Protocols
Management protocolsSNMP
Switching protocolsSNMP
Data link protocolsEthernet, Fast Ethernet, Gigabit Ethernet
Supported network protocolsHTTP, HTTPS
Certificates
CertificationCE, FCC, VCCI Class B, C-Tick
Memory
Packet buffer memory0.5 MB
Memory typeRAM
Internal memory128 MB
Flash memory32 MB
Design
Product colourGrey
LED indicatorsActivity, LAN, Link, PoE, Power, Speed
CertificationCE, FCC, VCCI Class B, C-Tick
Indication
LED indicatorsActivity, LAN, Link, PoE, Power, Speed
Power
Power consumption (max)15.1 W
Power supply includedYes
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Input current1.25 A
DC input voltage54 V
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port55 W
Power over Ethernet plus (PoE+) ports quantity8
Total Power over Ethernet (PoE) budget69.5 W
Power over Ethernet (PoE)Yes
Operational conditions
Storage temperature (T-T)-20 - 70 °C
Storage relative humidity (H-H)0 - 95%
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 3000 m
Heat dissipation237.38 BTU/h
Weight & dimensions
Width236 mm
Depth101 mm
Height27 mm
Weight610 g
Packaging data
Package typeBox
Package width161 mm
Package depth267 mm
Package height86 mm
Package weight1.49 kg
ManualYes
Logistics data
Master (outer) case width27.4 cm
Master (outer) case length35 cm
Master (outer) case height30.9 cm
Master (outer) case weight9.73 kg
Quantity per master (outer) case6 pc(s)
Packaging content
ManualYes

Netgear GS110TP Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Grey Power over Ethernet (PoE)

Product code: GS110TP-300EUS
£115.43 ex. VAT
20 in stock
