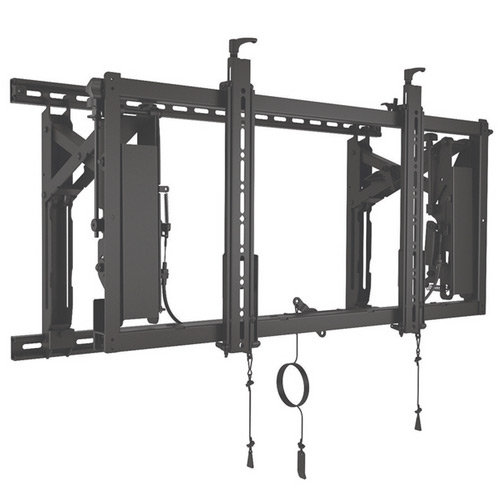

Chief LVS1U flat panel wall mount 2.03 m (80") Black



Product Description

Chief's ConnexSys Video Wall Mounting System solves common video wall challenges of speed, alignment, serviceability and rigidity. The ConnexSys Video Wall Mounting System provides the ability to level each row once by using strut channel to connect multiple mounts together with a simple-to-install system that can handle the largest requirements

The LVS1U ConnexSys Video Wall system landscape mount ships with rails for each mount.

SPEED
- Hang units on a single strut channel for quick row leveling
- No need for horizontal spacers
- Vertical measurement is simply the height of the display to the next rail
- Compatible with most 1-5/8" sizes of channel strut
- Reduces installation time - especially for XL and recessed configurations
- Tool-free ClickConnect™ latching secures displays
- PowerZone™ provides 6 points of adjustment in one easy-to-access location at the top of the mount

MISCELLANEOUS
- Security - pad lock 1/4" shank diameter
- Safety tested
- Universal interface
- Each mount comes out of the box with adjustments set in the exact same position

RIGIDITY
- Rigid frame keeps displays where you set them, even after extending for service
- Adjustable home depth position locks screens in place to maintain alignment despite accidental bumps/pushes

Specifications

Mounting
Minimum screen size compatibility106.7 cm (42")
Maximum weight capacity68 kg
Mounting typeWall
Minimum VESA mount200 x 100 mm
Maximum VESA mount700 x 400 mm
Maximum screen size compatibility2.03 m (80")
Ergonomics
Height adjustmentYes
Tilt angle range-2.5 - 4°
Design
Product colourBlack
Weight & dimensions
Width902 mm
Depth102 mm
Height554 mm
Package weight20 kg
Packaging data
Package weight20 kg
Technical details
Mounting typeWall

Chief LVS1U flat panel wall mount 2.03 m (80") Black

Product code: LVS1U
£323.70 ex. VAT
30 in stock
