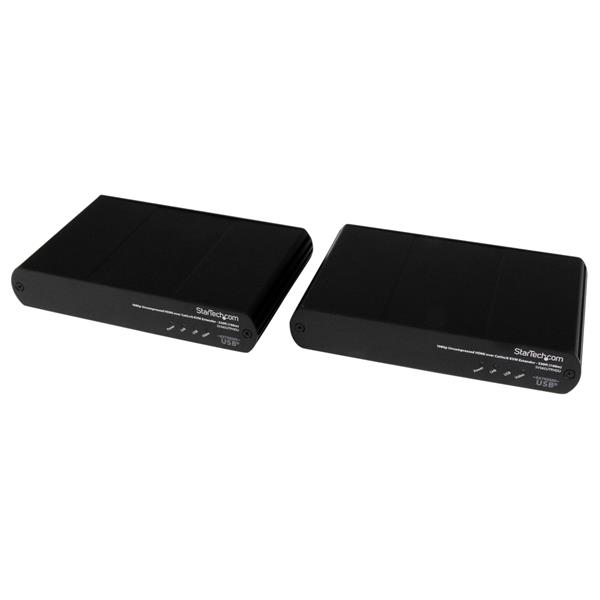

UNCOMPRESSED HDMI KVM EXTENDER CAT5E



Product Description

The SV565UTPHDU USB HDMI® KVM Extender lets you control a PC from up to 330ft (100m) away over a single Cat 5e or Cat 6 cable connection, with uncompressed 1080p HDMI video and access to up to 3 connected USB devices.

A flexible solution for powering large high-definition displays remotely, this HDMI USB extender supports uncompressed 1080p or 1920x1200 video resolutions at maximum distance. Additional features such as 3D support, HDCP, CEC and Lip Sync pass-through enable you to display your content exactly as you need it on the remote display.

This versatile KVM console extender can be connected to a single system, or cascaded to an existing KVM switch for remote operation of multiple systems, and features 3 USB 2.0 ports on the remote end, allowing you to connect a keyboard, mouse, printer or other peripherals. Since the extender uses Cat 5e (or better) network cable, you have the option to use existing infrastructure wiring, which helps avoid the hassle and expense of running bulky video cables.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage
- Power a large HDMI display from a distance with uncompressed 1080p video
- Operate a single system or KVM switch remotely through KVM console extension
- Save time and money by extending over an existing Cat 5e / Cat 6 infrastructure cabling

Specifications

Features
TypeAV transmitter & receiver
Connectivity technologyWired
Maximum transfer distance100 m
Rack mountingNo
Maximum digital resolution1920 x 1200 pixels
Product colourBlack
MaterialAluminium
Plug and PlayYes
CertificationCE, FCC, RoHS, UL
Transmitter
Transmitter video port typeHDMI
Transmitter local keyboard/mouse port typeUSB
Receiver
Receiver local video port typeHDMI
Power
AC input voltage100-240 V
AC input frequency50 - 60 Hz
AC adapter output voltage5 V
AC adapter output current3 A
Power consumption (transmitter) (max)15 W
Power consumption (receiver) (max)15 W
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)20 - 80%
Weight & dimensions
Package width214 mm
Package depth375 mm
Package height103 mm
Package weight2.46 kg
Technical details
Weight847 g
Dimensions (WxDxH)112 x 175 x 30 mm
Packaging data
AC adapter includedYes
Cables includedAC, HDMI, USB
Quick installation guideYes
Package width214 mm
Package depth375 mm
Package height103 mm
Package weight2.46 kg
Packaging content
AC adapter includedYes
Cables includedAC, HDMI, USB
Quick installation guideYes

UNCOMPRESSED HDMI KVM EXTENDER CAT5E

Product code: SV565UTPHDU
£667.52 ex. VAT
15 in stock
