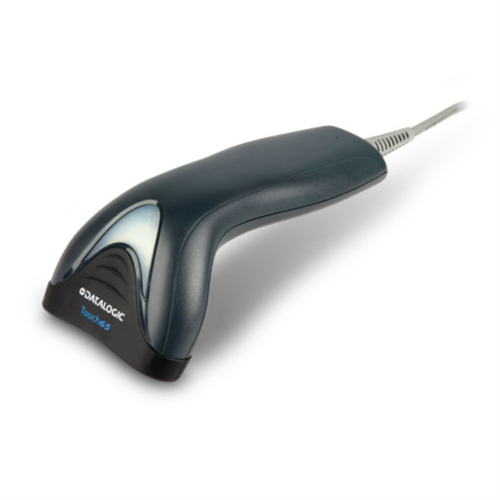

Datalogic Touch 65 Lite Handheld bar code reader 1D Laser Black



Product Description

The Touch TD1100 readers are available with the option of two different sizes of reading windows: 6.5 cm / 2.6 in (TD1100-65) for reading standard bar codes or 9.0 cm / 3.5 in (TD1100-90) for reading wide bar codes. Both options are provided with a complete all-in-one multi-interface solution including RS-232, USB and Keyboard Wedge (TD1130) and with USB or RS-232 / Keyboard Wedge interfaces (TD1120/TD1170). All models include the new innovative 'read-through' holder. Cables, power cords and supplies are all sold separately.

Specifications

Scanning
TypeHandheld bar code reader
Linear (1D) barcodes supportedCode 39,EAN-13
2D (matrix & stacked) barcodes supportedNot supported
Yaw reading angle-70 - 70°
Working distance15 cm
Wavelength640 nm
Tilt reading angle-45 - 45°
Tilt angle range-45 - 45°
Sensor typeLaser
Scanner type1D
Pitch reading angle-65 - 65°
Light levels (direct sunlight)0 - 20000 lx
Ports & interfaces
Connectivity technologyWired
BluetoothNo
Standard interfacesUSB
Performance
Built-in displayNo
International Protection (IP) codeIP30
Product colourBlack
CertificationRoHS
BuzzerYes
Light levels (direct sunlight)0 - 20000 lx
Design
TypeHandheld bar code reader
International Protection (IP) codeIP30
Product colourBlack
CertificationRoHS
Power
Power consumption100 mA
Input voltage5 V
Weight & dimensions
Width84 mm
Depth160 mm
Height58 mm
Weight130 g
Technical details
TypeHandheld bar code reader
Built-in displayNo
International Protection (IP) codeIP30
Product colourBlack
CertificationRoHS
BuzzerYes
Sustainability certificatesRoHS
Packaging data
Cables includedUSB
Operational conditions
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)0 - 50 °C
Operating relative humidity (H-H)5 - 95%
Light levels (direct sunlight)0 - 20000 lx
Packaging content
Cables includedUSB

Datalogic Touch 65 Lite Handheld bar code reader 1D Laser Black

Product code: TD1120-BK-65K1
£34.04 ex. VAT
54 in stock
