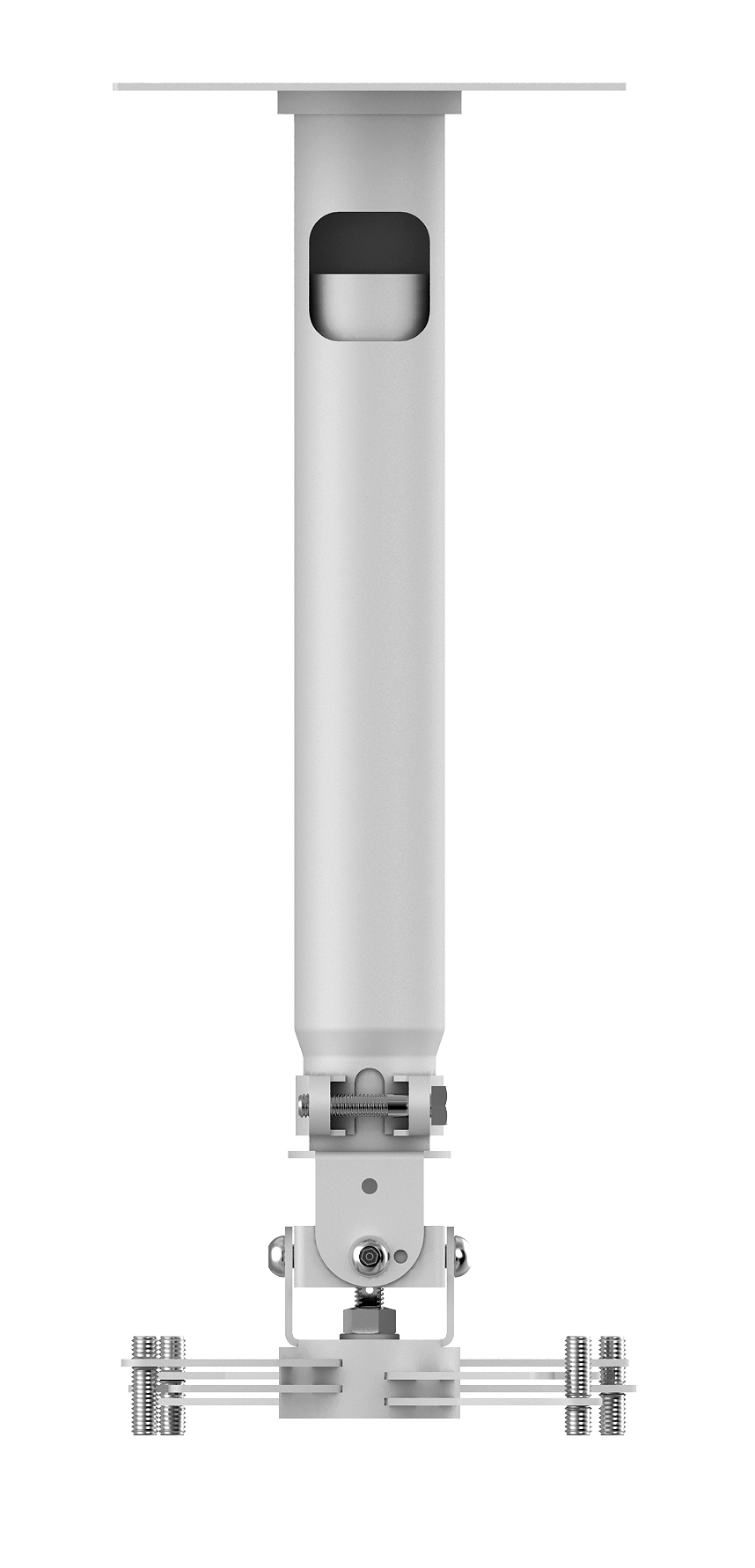

Vision TM-TELE project mount ceiling White



Product Description

- Universal projector ceiling mount with telescopic pole
- Overall length 440-735 mm
- Full adjustment: tilt at top for sloping ceilings / pitch and roll at the bottom

The TM-TELE Techmount is a projector ceiling bracket for anchoring any data projector safely to a ceiling. The telescopic design allows fast deployment and adjustment without the need cut and drill the pole. It has a greater range than most other telescopic mounts and the pole can be removed for “flush-mounting” the projector as close to the ceiling as possible. Note: unlike the TM-1200 the length of this bracket cannot be extended.

One-Man Installation
Thoughtful design detail include a length adjustment clamp system which requires only one hand.

Sloping Ceilings
A tilting mechanism is included which tilts to a full 90 degrees, allowing you to use the bracket as a boom if need be.

Safety Approved
A back-up fall-arrest tether is included which secures the projector to your bracket, and the pole has a mechanical stop so that the two parts of the pole cannot be separated. Vision recommends a maximum safe working load of 10kg which is well within the limits of the product and meets the BSi installation standard specification (PAS122:2009).

Easy fit
Projectors have threaded inserts in the bottom for attachment – but not all use the same diameter screws so Vision includes a selection to suit most projectors. Simply locate the “spider” arms on our bracket over the attachment holes, and insert a screw into the projector.

Obstruction-free Cable Management
Vision’s unique ‘chute-through’ system leaves cable access clear – even for big VGA connectors.

Tools Included
A spanner and pin-hex key are included. Vision also includes a hex-key bit for a power drill to speed up installation.

Secure
Quick-release mechanisms make life easier for thieves, so the TM-TELE is secure and features security bolts.

Specifications

Mounting
Mounting typeceiling
Maximum weight capacity10 kg
Performance
Tilt angle range0 - 90°
Mounting typeceiling
Maximum weight capacity10 kg
Product colourWhite
Ergonomics
Tilt angle range0 - 90°
Product colourWhite
Weight & dimensions
Depth (min)43.7 cm
Depth (max)73.5 cm
Technical details
Tilt angle range0 - 90°
Mounting typeceiling
Maximum weight capacity10 kg
Product colourWhite

Vision TM-TELE project mount ceiling White

Product code: TM-TELE
£34.62 ex. VAT
16 in stock
