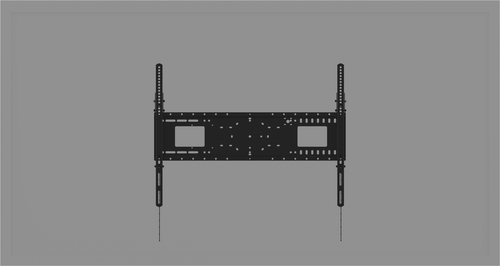

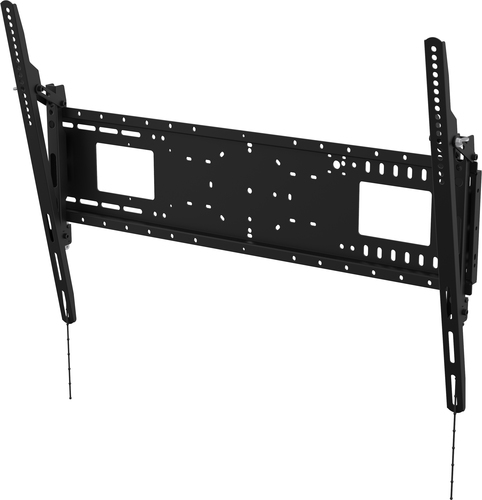

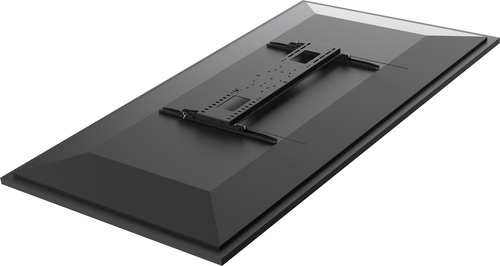

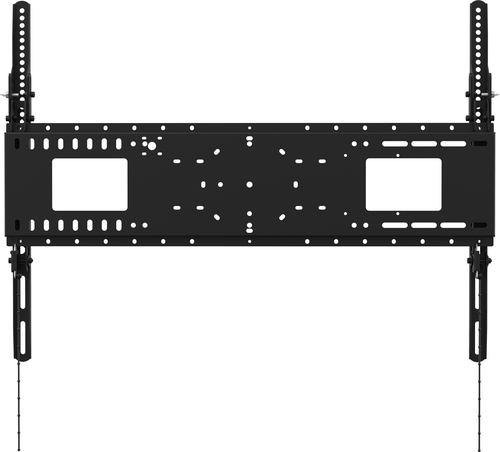

Vision’s Vision Flat-panel Mount – Wall range is designed by Vision’s engineering team for professional AV installers. This mount is no-compromise: very strong, fast to install, highly adjustable, everything included. The VFM-W8X6 fits any flat-panel LCD or LED screen which has rear mounting holes up to 800 wide x 600 mm tall apart.
Interactive flat panels are large and very heavy. Vision’s VFM-W8X6T uses heavy gauge sheet metal to take the weight up to SWL 130 kg / 287 lb safely.
For 47-90" Displays
Fits most displays from 47-90″. Note: curved screens are not supported by this mount.
Designed for Professionals
A proven design allows fast fixing, and slotted holes on the wall part allowing levelling adjustment after fixing.
Side by Side
Two horizontal sections can be fixed together side by side for dual-display video conference or huddle room applications. Or extend the horizontal to bridge wide load bearing points in a wall.
An optional flip-up laptop shelf comes with an adjustable outrigger which fixes it to the horizontal section. It can be positioned at the correct height to the side of the display.
Vision includes everything you need including a load of M5, 6, and 8 bolts in varying lengths to fix the vertical arms to the rear of the display.

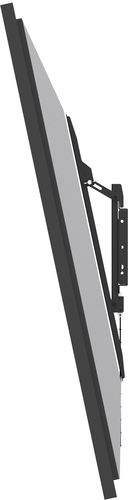

The thin design holds the display just 51 mm / 2.0″ off the wall. This looks better, reduces snagging risk, and because the load is close to the wall the mount has a higher safe working load rating.
The display latches on the horizontal section as the display is hung in place. Snap the plastic pull-rods off to length so they are hidden behind the display. Give the pull-rods a downward tug to unlatch the display.
Hide Media Player
Thoughtfully placed VESA 100 x 100 mm holes on the horizontal part allow a thin media player to fix behind the display out of sight.
Video Conference Shelf
An optional shelf fixes in the centre above or below the display. Any camera including the Logitech Rally can be fixed to the shelf. It is also designed to accommodate Yamaha’s VVC-1000 – which fixes securely in place, and Barco’s Clickshare base stations. With VESA 100 x 100 mm holes on the vertical section, product’s like Heckler’s Zoom Room iPad enclosure can be fixed.
Ideal in applications where the display is mounted high, this mount features tilt to direct the display downward.
