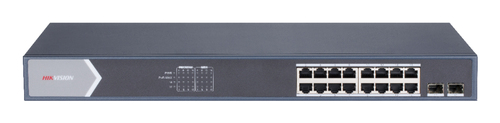

Hikvision DS-3E1518P-SI network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Product code: 301802030
  • Hikvision DS-3E1518P-SI
  • Managed
  • L2
  • Gigabit Ethernet (10/100/1000)
  • Power over Ethernet (PoE)
  • Rack mounting
  • 1U

Hikvision DS-3E1518P-SI network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Product code Alt: 301802030
Hikvision DS-3E1518P-SI network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Product Description

Hikvision DS-3E1518P-SI network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Features

  • 16 × gigabit PoE ports, and 2 × gigabit fiber optical ports
  • IEEE 802.3at/af standard for PoE ports
  • Network topology management, alarm push, network health monitor
  • 6 KV surge protection for PoE ports
  • AF/AT camera can reach up to 300 m in extend mode
  • PoE watchdog to auto detect and restart the cameras that do not respond
  • Various layer 2 management protocols such as STP/RSTP, VLAN, link aggregation, SNMP, QoS and so on
    •

    Benefits

    300-Meter Long Distance Transmission
    • With the Extend Mode on, the transmission distance can be increased to 300 meters. Even when the transmission distance reaches 300 meters, the video is still smooth and stable.
    VIP Port Transmission Priority
    • VIP ports enjoy higher priority and more stable transmission when the switch is overloaded. It' s recommended to connect cameras in critical areas to VIP ports.
    PoE Watchdog
    • The PoE watchdog can detect the status of the connected devices and restart the offline cameras automatically, saving the cost of manpower maintenance.
    Easy Port Isolation
    • The port isolation function can virtually isolate the ports with each other, preventing data from leaking among ports, and avoiding broadcasting storm in case of mistaken connection.
    Higher PoE Power Budget
    • Hikvision PoE switches support IEEE 802.3 af/at/bt PoE standard, and can flexibly match with front-end devices according to their power standard.
    6 KV Surge Protection
    • Hikvision switches are designed with surge protection function to protect cameras installed outdoors that are vulnerable to lightning strikes.

    Specifications

    Ports & interfaces
    Basic switching RJ-45 Ethernet ports quantity
    16
    Basic switching RJ-45 Ethernet ports type
    Gigabit Ethernet (10/100/1000)
    Installed SFP modules quantity
    0
    Installed SFP+ modules quantity
    0
    Power
    Power source
    AC
    Network
    Networking standards
    IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    10G support
    No
    Data transmission
    MAC address table
    8000 entries
    Switching capacity
    56 Gbit/s
    Management features
    Switch type
    Managed
    Design
    Rack mounting
    Yes
    Power over Ethernet (PoE)
    Power over Ethernet (PoE)
    Yes
