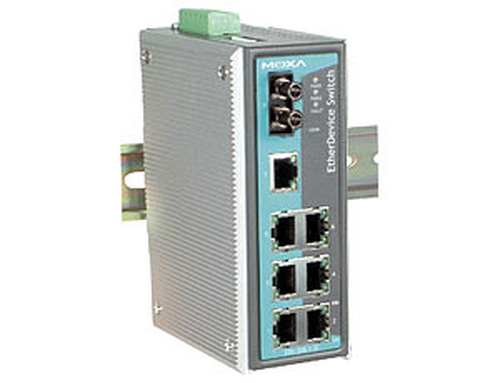

Moxa EDS-308-MM-ST network switch Unmanaged

Product code: 40763
  • Moxa EDS-308-MM-ST
  • Unmanaged
  • Full duplex

Moxa EDS-308-MM-ST network switch Unmanaged

Product code Alt: 40763
Moxa EDS-308-MM-ST network switch Unmanaged

Product Description

5 and 8-port unmanaged Ethernet switches.
The EDS-305/308 are 5-port and 8-port Ethernet switches that provide an economical solution for your industrial Ethernet connections. The built-in relay warning function alerts network engineers when power failures or port breaks occur, and the switches are designed for harsh industrial environments, such as in hazardous locations (Class I, Div. 2/ATEX). The switches comply with FCC, TÜV, UL, and CE standards, and come in two model types. Standard operating temperature range models (0 to 60°C) and wide operating temperature range models (-40 to 75°C). Both models undergo a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. The EDS-305/308 switches can be installed easily on a DIN-Rail or in a distribution box.
- Redundant dual 24 VDC power inputs.
- Relay output warning for power failure and port break alarm.
- Broadcast storm protection.
- Transparent transmission of VLAN tagged packets.
- 40 to 75°C operating temperature range (T models).

Features

  • Relay output warning for power failure and port break alarm
  • Broadcast storm protection
  • -40 to 75°C operating temperature range (-T models)
    •

    Specifications

    Ports & interfaces
    Basic switching RJ-45 Ethernet ports quantity
    6
    Power
    Power source
    AC/DC
    Network
    Networking standards
    IEEE 802.3, IEEE 802.3u, IEEE 802.3x
    10G support
    No
    Data transmission
    MAC address table
    1000 entries
    Switching capacity
    0.1 Gbit/s
    Management features
    Switch type
    Unmanaged
    Design
    Stackable
    Yes
    Power over Ethernet (PoE)
    Power over Ethernet (PoE)
    No
