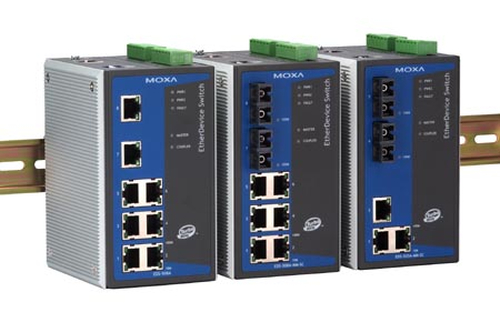

Moxa EtherDevice™ Switch EDS-508A, 6 x 10/100BaseT(X), Multi Mode SC Connector x 2 Managed

Product code: 41771
  • Moxa EtherDevice™ Switch EDS-508A
  • 6 x 10/100BaseT(X)
  • Multi Mode SC Connector x 2
  • Managed

Moxa EtherDevice™ Switch EDS-508A, 6 x 10/100BaseT(X), Multi Mode SC Connector x 2 Managed

Product code Alt: 41771
Moxa EtherDevice™ Switch EDS-508A, 6 x 10/100BaseT(X), Multi Mode SC Connector x 2 Managed

Product Description

EDS-508A/505A is a plug-and-play managed redundant Ethernet switch. A set of Turbo Ring DIP switches makes it easy to set up Turbo Ring (recovery time < 20 ms) to increase system reliability. In addition, EDS-508A/505A supports many advanced managed features, suchas QoS, 802.1Q VLAN, port-based VLAN, IEEE802.1X, SSL, SNMP V1/V2c/V3, IGMP Snooping, Port Trunking, and RMON for network management. The extended operating temperature range of -40 to 75°C is also available.

-Advanced Industrial Networking Capability
Plug-n-Play, Turbo Ring (recovery time < 20 ms at full load) and RSTP/STP (IEEE802.1W/D)
IGMP Snooping and GMRP for filtering multicast traffic from industrial Ethernet
Port-based VLAN, IEEE802.1Q VLAN and GVRP protocol to ease network planning
QoS-IEEE802.1p/1Q and TOS/DiffServ to increase determinism
802.3ad, LACP for optimum bandwidth utilization
Port Trunking for optimum bandwidth utilization
RMON for efficient network monitoring and proactive capability
SNMP V1/V2c/V3 for different levels of network management security
IEEE802.1X and https/SSL to enhance network security
-Designed for Industrial Applications
Bandwidth management prevents unpredictable network status
ABC-01 (Automatic Backup Configurator) for system configuration backup
Port lock for access from unauthorized MAC address
Port mirroring for online debugging
Automatic warning by exception through email, relay output
Digital inputs to integrate sensors and alarms with IP networks
Automatic recovery of connected device's IP addresses
Line-swap fast recovery (Patented)
Redundant, dual DC power inputs
Regular (0 to 60°C) and extended (-40 to 75°C) operating temperature models available
IP30, rugged high-strength case
Long-haul transmit distance of 40 km or 80 km
DIN-Rail or panel mounting ability
Configurable by Web browser, Telnet/Serial console, Windows utility
Ping commands to identify network segment integrity
-Recommended Software and Accessories
ABC-01 RS-232 RJ45-based Automatic Backup Configurator
EDS-SNMP OPC Server Pro
DR series DIN-Rail 24 VDC power supplies

Features

  • Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy
  • TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
  • Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
  • Supports MXstudio for easy, visualized industrial network management
    •

    Specifications

    Ports & interfaces
    Basic switching RJ-45 Ethernet ports quantity
    8
    Management features
    Switch type
    Managed
    Power over Ethernet (PoE)
    Power over Ethernet (PoE)
    No
