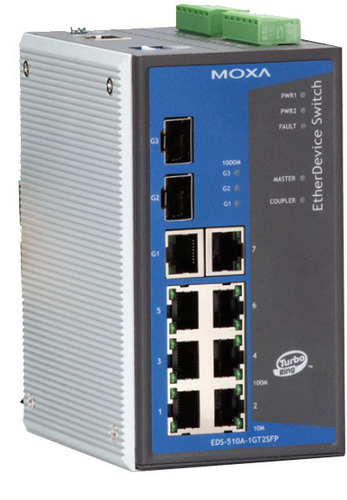

Moxa EDS-510A-1GT2SFP network switch Managed

Product code: 42029
  • Moxa EDS-510A-1GT2SFP
  • Managed

Moxa EDS-510A-1GT2SFP network switch Managed

Product code Alt: 42029
Moxa EDS-510A-1GT2SFP network switch Managed

Product Description

- IPv6 Ready logo awarded (IPv6 Logo Committee certified)
- IEEE 1588 PTP (Precision Time Protocol) for precise time synchronization of networks
- DHCP Option 82 for IP address assignment with different policies
- Modbus/TCP industrial Ethernet protocol supported
- Turbo Ring and Turbo Chain (recovery time < 20 ms at full load), and RSTP/STP (IEEE 802.1w/D)
- IGMP Snooping and GMRP for filtering multicast traffic
- Port-based VLAN, IEEE 802.1Q VLAN and GVRP to ease network planning
- QoS (IEEE 802.1p/1Q) and TOS/DiffServ to increase determinism
- Port Trunking for optimum bandwidth utilization
- SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
- SNMPv1/v2c/v3 for different levels of network management
- RMON for efficient network monitoring and proactive capability
- Bandwidth management prevents unpredictable network status
- Lock port function for blocking unauthorized access based on MAC address
- Port mirroring for online debugging
- Automatic warning through e-mail and relay output
- Works with MXview industrial network management software
- 40 to 75°C operating temperature range (T models)

The EDS-510A Gigabit managed redundant Ethernet switch is equipped with up to 3 Gigabit Ethernet ports, making it ideal for building a Gigabit Turbo Ring, but leaving a spare Gigabit port for uplink use. The Ethernet redundant Turbo Ring and Turbo Chain (recovery time < 20 ms) and RSTP/STP (IEEE 802.1w/D) can increase system reliability switchesand the availability of your network backbone. The EDS-510A series is designed especially for communication demanding applications such as process control, shipbuilding, ITS, and DCS systems, which can benefit from a scalable backbone construction.

Features

  • 2 Gigabit Ethernet ports for redundant ring and 1 Gigabit Ethernet port for uplink solution
  • Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches),
  • Gigabit Ethernet recovery time < 50 ms
  • RSTP/STP, and MSTP for network redundancy
  • TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
  • Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
    •

    Specifications

    Ports & interfaces
    Basic switching RJ-45 Ethernet ports quantity
    8
    Network
    Networking standards
    IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x
    Management features
    Switch type
    Managed
    Power over Ethernet (PoE)
    Power over Ethernet (PoE)
    No
