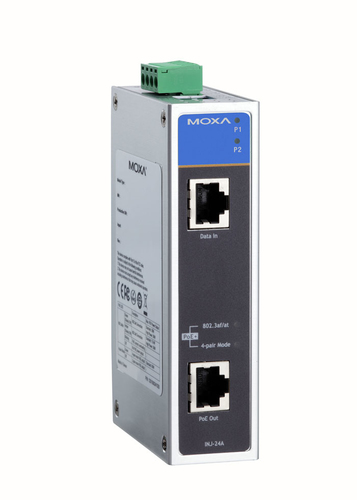

Moxa INJ-24A network extender Network repeater Metallic

Product code: 46044
  • Moxa INJ-24A
  • Network repeater
  • 2407739 h
  • 10/100/1000Base-T(X)
  • IEEE 802.3
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3u
  • Metallic
  • EN 61000-4-2 (ESD) Level 3
  • EN 61000-4-3 (RS) Level 3
  • EN 61000-4-4 (EFT) Level 3
  • EN 61000-4-5...

Moxa INJ-24A network extender Network repeater Metallic

Product code Alt: 46044
Moxa INJ-24A network extender Network repeater Metallic

Product Description

The INJ-24A is a Gigabit High Power PoE+ Injectors that combines power and data and delivers them to a powered device over one Ethernetcable. Designed for power-hungry devices, the INJ-24 injector provides up to 60 watts, twice as much as conventional PoE+ injectors. It features DIP switch configurator and LED indicator for PoE management, and also supports 24/48 VDC power inputs for power redundancy and operational flexibility. The -40 to 75oC wide temperature range design makes the INJ-24 perfect for operating in critical industrial environments.

- High power mode provides up to 60 W;
- DIP switch configurator and LED indicator for PoE management;
- 3KV surge resistance for harsh environments;
- Mode A and Mode B selectable for flexible installation;
- Built-in 24/48 VDC booster for redundant dual power inputs;
- 40 to 75°C operating temperature range (T model).

Features

  • High-power mode provides up to 60 W
  • DIP switch configurator and LED indicator for PoE management
  • 3 kV surge resistance for harsh environments
  • Mode A and Mode B selectable for flexible installation
  • Built-in 24/48 VDC booster for redundant dual power inputs
  • -40 to 75°C operating temperature range (-T model)
    •

    Specifications

    Design
    Product colour
    Metallic
    Performance
    Type
    Network repeater
