ATEN 2 x 120W Power Amplifier with DSP

£849.72 excl. VAT

ATEN 2 x 120W Power Amplifier with DSP

Product code: AP212-AT-E

ATEN 2 x 120W Power Amplifier with DSP
240 W
D
0.1%
20000 O
600 O
240 W

ATEN 2 x 120W Power Amplifier with DSP

Product code Alt: AP212-AT-E

Product Description

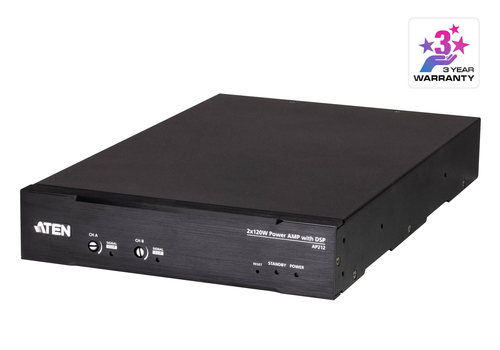

ATEN AP212 is a dual-channel DSP-equipped amplifier that delivers 120 W per channel in a compact enclosure. The support for balanced / unbalanced line level inputs and the capability of driving 4 ohm low impedance or 70/100V line (in Bridge mode) loudspeaker systems have made AP212 suit a wide range of public address applications. Configurable through an intuitive WebGUI, the built-in DSP allows Speaker EQ, 5-band EQ, delay, limiter, and up to 20 presets for precise tuning and extensive audio system protection purposes. Ground lift is deployed to eliminate unwanted hum noises from power circuit. Immersive sound experience is delivered with no compromise on power efficiency thanks to the amplifier’s Class-D design and ENERGY STAR qualification, conserving energy while lowering operational costs. Customizable Auto Standby mode enables the AP212 to automatically switch to “sleep” when the signal level comes lower than -40 / -50 dBu for 10 / 15 / 25 minutes.

Speaking of the system protection circuit, the AP212, along with the speakers connected to it, are prevented from damages led by shorted outputs, over / under-voltage, high frequency overload, and overtemperature. Plus, the amplifier will be muted when the heat sink temperature exceeds the limit. The fanless design avoids fan noise and prevents dust from building up inside the chassis.

Engineered to deliver the ultimate flexibility, the AP212 features an expansion slot for plugging in AP901 2-CH Dante Expansion Card to make the sound system compatible with Dante network or AP902 2-CH Mic/Line Pre-AMP Expansion Card to receive two channels of mic / line input signals. The amplifier can also be integrated with VK Control System via RS-232 and Ethernet connection for comprehensive control even from a distance. Mounting hardware is available for rack or surface-mounting depending on the installation needs. With a rich set of features, the AP212 assures reliable amplification with professional audio quality and high power efficiency for any enterprise-grade applications that require high quality sound reinforcement and distribution.

Features

A dual-channel DSP-equipped amplifier that delivers 120W per channel in a compact enclosure

Supports balanced / unbalanced line level inputs and drives 4 ohm low impedance or 70/100V line (in Bridge mode) loudspeaker systems

Built-in WebGUI-configurable DSP allows speaker EQ, 5-band EQ, delay, limiter, and up to 20 presets for precise tuning and system protection

Ground lift deployed to eliminate unwanted noises from power circuit

Class-D design with ENERGY STAR qualification for high power efficiency

Customizable Auto Standby mode – Amplifier automatically switches to “sleep” when the signal level comes lower than -40 / -50 dBu for 10 / 15 / 25 minutes

Integrated protection circuit – Protects the system from damages caused by Amp shortcut, Amp output over/under voltage, high frequency overload, and overtemperature

Amplifier will be muted when the heat sink temperature exceeds the limit

Fanless design – Avoids fan noise and prevents dust from building up

Expansion slot for add-on expansion card – Install AP901 2-CH Dante Expansion Card to make the sound system compatible with Dante network or AP902 2-CH Mic/Line Pre-AMP Expansion Card to receive two channels of mic / line input signals

Supports VK Control System via RS-232 and Ethernet connection

Supports rack or surface-mounting

Firmware upgradable

Specifications

Technical details
Connectivity technology	Wired
Audio
Peak power per channel	240 W
Amplifier class	D
Total Harmonic Distortion (THD)	0.1%
Ports & interfaces
Speakers connectivity type	Euroblock
Power
Power source type	AC
