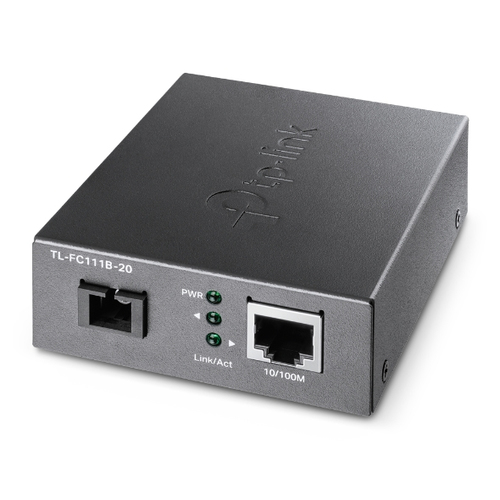

TP-Link 10/100 Mbps RJ45 to 100 Mbps Single-mode SC WDM Bi-Directional Fiber Converter

Product code: FC111B-20
  • TP-Link 10/100 Mbps RJ45 to 100 Mbps Single-mode SC WDM Bi-Directional Fiber Converter
  • 100 Mbit/s
  • IEEE 802.3
  • IEEE 802.3i
  • IEEE 802.3x
  • 10BASE-T
  • 100BASE-T
  • 100BASE-FX
  • 100 Mbit/s
  • Full
  • Half

TP-Link 10/100 Mbps RJ45 to 100 Mbps Single-mode SC WDM Bi-Directional Fiber Converter

Product code Alt: FC111B-20
TP-Link 10/100 Mbps RJ45 to 100 Mbps Single-mode SC WDM Bi-Directional Fiber Converter

Product Description

What This Product Does
TL-FC111B-20 is a 100M media converter, providing a 100M RJ-45 port and a 100M SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.

How This Product Works
TL-FC111B-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20km (12.4 miles) over only one fiber, which saves half of the cable deployment cost for customers. TL-FC111B-20 transmits data at 1310nm wavelength and receives data at 1550nm wavelength on optical fiber. The TL-FC111A-20 works in the other end as a pair by receiving data at a wavelength 1310nm and sending data at wavelength 1550nm.

Other Features
Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link’s TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.

Features

  • Complies with 802.3u 10/100Base-TX, 100Base-FX standards
  • Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
  • Adopts WDM technology, transmitting and receiving data on one single fiber
  • Extends fiber distance up to 20km
    •

    Specifications

    Ports & interfaces
    Fiber optic connector
    SC
    Network
    Maximum data transfer rate
    100 Mbit/s
    Performance
    Maximum transfer distance
    20000 m
    Features
    Internal
    No
    £13.96 excl. VAT
    6 in stock

    Product code: FC111B-20
    • TP-Link 10/100 Mbps RJ45 to 100 Mbps Single-mode SC WDM Bi-Directional Fiber Converter
    • 100 Mbit/s
    • IEEE 802.3
    • IEEE 802.3i
    • IEEE 802.3x
    • 10BASE-T
    • 100BASE-T
    • 100BASE-FX
    • 100 Mbit/s
    • Full
    • Half
    £13.96 excl. VAT
    6 in stock

    Product Description

    What This Product Does
    TL-FC111B-20 is a 100M media converter, providing a 100M RJ-45 port and a 100M SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.

    How This Product Works
    TL-FC111B-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20km (12.4 miles) over only one fiber, which saves half of the cable deployment cost for customers. TL-FC111B-20 transmits data at 1310nm wavelength and receives data at 1550nm wavelength on optical fiber. The TL-FC111A-20 works in the other end as a pair by receiving data at a wavelength 1310nm and sending data at wavelength 1550nm.

    Other Features
    Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link’s TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.

    Features

  • Complies with 802.3u 10/100Base-TX, 100Base-FX standards
  • Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
  • Adopts WDM technology, transmitting and receiving data on one single fiber
  • Extends fiber distance up to 20km
    •

    Specifications

    Ports & interfaces
    Fiber optic connector
    SC
    Network
    Maximum data transfer rate
    100 Mbit/s
    Performance
    Maximum transfer distance
    20000 m
    Features
    Internal
    No
