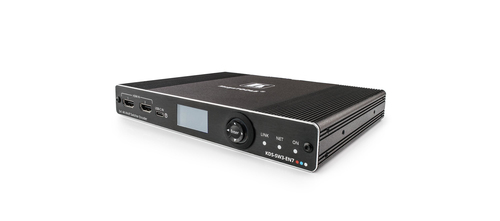

Kramer Electronics KDS-SW3-EN7 AV transmitter & receiver Black

Product code: KDS-SW3-EN7
  • Kramer Electronics KDS-SW3-EN7
  • 3840 x 2160 pixels
  • AV transmitter & receiver
  • Wired
  • 3D
  • Black

Kramer Electronics KDS-SW3-EN7 AV transmitter & receiver Black

Product code Alt: KDS-SW3-EN7
Kramer Electronics KDS-SW3-EN7 AV transmitter & receiver Black

Product Description

4K AVoIP Encoder Switcher with Dante

KDS-SW3-EN7 is an auto switcher and advanced encoder for streaming a selected video signal at 4K via Ethernet over copper cable in unicast (one-to-one) or multicast (one-to-many) configurations. It can add digital audio Dante, USB, IR, RS-232, or CEC signals.

- KDS–SW3–EN7 provides exceptional quality, advanced user–friendly operation, and flexible control.
- Instantaneous Switching Time — 1 second switching time between selectable video inputs.
- Video Streaming Transmitter — Streams up to 4K@60Hz (4:2:0) resolution signals over a 1G network interface. While KDS–DEC7 decodes the stream to 4K@30Hz (4:4:4) resolution.
- Streaming delay 33msec — for video 4K@30Hz 4:4:4 signal.
- Streaming Support — Provides unicast and multicast streaming.
- Flexible Analog Audio Embedding and De–embedding — Select balanced analog audio as input to embed into the streaming and HDMI™ output signal, or as output to extract the HDMI audio signal and output it as balanced analog audio.
- Flexible Digital Audio Embedding and De–embedding Dante — Select digital audio as input to embed into the streaming and HDMI™ output signal, or as output to extract the HDMI audio signal and output it as balanced analog audio.
- Easy To Use KM/KVM Support — Searchable, OSD menu for KM and fully configurable KVM roaming.
- Power consumption without USB–C Power Delivery is 13W — power consumption with USB–C Power Delivery is 77W (requiring the optional power supply).
- Convenient and Comprehensive Control — Control the unit using intuitive embedded web pages, Protocol 3000 API commands via Ethernet, or front panel LCD and navigation buttons.
- PoE Support — Powered with PoE connection from PoE LAN switch.
- Control Gateway — Through P3K or special TCP connection, users can control/communicate with IR, RS–232, or CEC to the connected devices.
- Separate Service LAN Port — can be used for physical separation between AV and command streams to separate LAN for security and reliability purposes.
- Selectable Inputs — 2 HDMI and 1 USB–C input.
- Analog/Digital audio inputs and outputs.
- Plug–and–play with Netgear M4250 AVoIP switches, Kramer Control, and KDS–USB2.

Features

  • Outstanding end–user experience
  • Ideal for large–scale deployments
  • Robust security
  • Simple planning and rollout
    •

    Specifications

    Ports & interfaces
    Connectivity technology
    Wired
    Features
    Type
    AV transmitter & receiver
    Maximum resolution
    3840 x 2160 pixels
    £1,055.60 excl. VAT
    Out of stock

    Product code: KDS-SW3-EN7
    • Kramer Electronics KDS-SW3-EN7
    • 3840 x 2160 pixels
    • AV transmitter & receiver
    • Wired
    • 3D
    • Black
    £1,055.60 excl. VAT
    Out of stock

    Product Description

    4K AVoIP Encoder Switcher with Dante

    KDS-SW3-EN7 is an auto switcher and advanced encoder for streaming a selected video signal at 4K via Ethernet over copper cable in unicast (one-to-one) or multicast (one-to-many) configurations. It can add digital audio Dante, USB, IR, RS-232, or CEC signals.

    - KDS–SW3–EN7 provides exceptional quality, advanced user–friendly operation, and flexible control.
    - Instantaneous Switching Time — 1 second switching time between selectable video inputs.
    - Video Streaming Transmitter — Streams up to 4K@60Hz (4:2:0) resolution signals over a 1G network interface. While KDS–DEC7 decodes the stream to 4K@30Hz (4:4:4) resolution.
    - Streaming delay 33msec — for video 4K@30Hz 4:4:4 signal.
    - Streaming Support — Provides unicast and multicast streaming.
    - Flexible Analog Audio Embedding and De–embedding — Select balanced analog audio as input to embed into the streaming and HDMI™ output signal, or as output to extract the HDMI audio signal and output it as balanced analog audio.
    - Flexible Digital Audio Embedding and De–embedding Dante — Select digital audio as input to embed into the streaming and HDMI™ output signal, or as output to extract the HDMI audio signal and output it as balanced analog audio.
    - Easy To Use KM/KVM Support — Searchable, OSD menu for KM and fully configurable KVM roaming.
    - Power consumption without USB–C Power Delivery is 13W — power consumption with USB–C Power Delivery is 77W (requiring the optional power supply).
    - Convenient and Comprehensive Control — Control the unit using intuitive embedded web pages, Protocol 3000 API commands via Ethernet, or front panel LCD and navigation buttons.
    - PoE Support — Powered with PoE connection from PoE LAN switch.
    - Control Gateway — Through P3K or special TCP connection, users can control/communicate with IR, RS–232, or CEC to the connected devices.
    - Separate Service LAN Port — can be used for physical separation between AV and command streams to separate LAN for security and reliability purposes.
    - Selectable Inputs — 2 HDMI and 1 USB–C input.
    - Analog/Digital audio inputs and outputs.
    - Plug–and–play with Netgear M4250 AVoIP switches, Kramer Control, and KDS–USB2.

    Features

  • Outstanding end–user experience
  • Ideal for large–scale deployments
  • Robust security
  • Simple planning and rollout
    •

    Specifications

    Ports & interfaces
    Connectivity technology
    Wired
    Features
    Type
    AV transmitter & receiver
    Maximum resolution
    3840 x 2160 pixels
