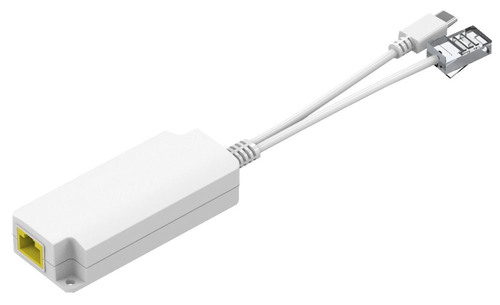

Microconnect MC-POESPLITTER-CW network splitter Power over Ethernet (PoE) White

Product code: MC-POESPLITTER-CW
  • Microconnect MC-POESPLITTER-CW
  • 10/100Base-T(X)
  • White
  • 200 g
  • 1 pc(s)
  • 240 g
  • 5 V

Microconnect MC-POESPLITTER-CW network splitter Power over Ethernet (PoE) White

Product code Alt: MC-POESPLITTER-CW
Microconnect MC-POESPLITTER-CW network splitter Power over Ethernet (PoE) White

Product Description

MC-POESPLITTER-CW is an indoor rated PoE USB-C splitter specially
designed for complex backhaul and networking
application. Enclosed in an IP40 fire retardant plastic
case with compact design.
It works as a converter to get power and data from PoE
injector or PoE Switch of 802.3af/at over RJ45 connector
then separate power and data to PDs.
The output power is 5Vdc, 2.5A(max) via USB-C Male
connector to PDs. Such as computers, iPad, Macbook,
Google Wifi, Tablet PC, and other USB-C devices.
PoE signal into a separate data signal at 10/100Mbps.
For planning purposes, the effective distance is 100 meters
via Cat5e/Cat6 cables from Ethernet data source to PD

Features

  • 802.3af/at PoE Injector/Switch input
  • or Passive 40-57Vdc PoE input
  • Data Speed: 10/100Mbps
  • Isolated design to avoid huge current input damage
  • Compact design
    •

    Specifications

    Ports & interfaces
    Ethernet LAN (RJ-45) ports
    2
