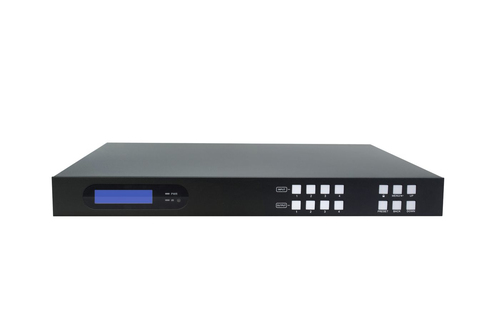

Vivolink VLHDMIMAT4X444 matrix switcher AV matrix switcher Built-in display 65 W

Product code: VLHDMIMAT4X444
  • Vivolink VLHDMIMAT4X444
  • AV matrix switcher
  • 4096 x 2160 pixels
  • 18 Gbit/s
  • 10,100,1000 Mbit/s
  • Fast Ethernet
  • Gigabit Ethernet
  • LPCM

Vivolink VLHDMIMAT4X444 matrix switcher AV matrix switcher Built-in display 65 W

Product code Alt: VLHDMIMAT4X444
Vivolink VLHDMIMAT4X444 matrix switcher AV matrix switcher Built-in display 65 W

Product Description

4x4 HDBaseT matrix switcher with audio matrix.
Fully compliant with the HDMI 2.0 and HDCP 2.2.
Supports HDMI resolution up to 4K@60Hz 4:4:4, HDR10.


Features four mirrored HDMI outputs for four HDBaseT outputs, and the four HDMI outputs support 4K to 1080p down-scaling.

The four HDBaseT outputs support 24V PoC, allowing the receivers to draw their power from the matrix switcher over the HDBaseT cable.

Transmits 4K signal to the distance up to 131 feet (40 meters) and 1080p signal to the distance up to 230 feet (70 meters) over a single CATx Ethernet cable.

Supports audio matrix. Provides four digital SPDIF audio outputs and four analog L+R audio outputs for HDMI input audio de-embedding and HDBaseT output audio de-embedding. Moreover, the four digital SPDIF audio outputs supports ARC audio output from receivers.

Volume adjustment for analog L+R audio outputs.

Supports comprehensive EDID management and advanced HDCP handling.

Controllable via front panel buttons, RS232 local and pass-through, IR local and pass-through, CEC, and TCP/IP (built-in GUI).
Compatible receiver: VLHDMIMAT4X444-R

Features

  • 4x4 HDBaseT matrix switcher with audio matrix
  • Fully compliant with the HDMI 2.0 and HDCP 2.2
  • Supports HDMI resolution up to 4K@60Hz 4:4:4, HDR10
  • Features four mirrored HDMI outputs for four HDBaseT outputs, and the four HDMI outputs support 4K to 1080p down-scaling
  • The four HDBaseT outputs support 24V PoC, allowing the receivers to draw their power from the matrix switcher over the HDBaseT cable
  • Transmits 4K signal to the distance up to 40 metres and 1080p signal to the distance up to 70 metres over a single CAT6a Ethernet cable
  • Supports audio matrix. Provides four digital SPDIF audio outputs and four analogue L+R audio outputs for HDMI input audio de-embedding and HDBaseT output audio de-embedding. Moreover, the four digital SPDIF audio outputs supports ARC audio output from receivers
  • Volume adjustment for analogue L+R audio outputs
  • Supports comprehensive EDID management and advanced HDC handling
  • Controllable via front panel buttons, RS232 local and pass-through, IR local and pass-through, CEC, and TCP/IP (built-in GUI)
    •

    Specifications

    Display
    Built-in display
    Yes
    Power
    Power consumption (max)
    65 W
    Features
    Product type
    AV matrix switcher
    £1,115.40 excl. VAT
    2 in stock

    Product code: VLHDMIMAT4X444
    • Vivolink VLHDMIMAT4X444
    • AV matrix switcher
    • 4096 x 2160 pixels
    • 18 Gbit/s
    • 10,100,1000 Mbit/s
    • Fast Ethernet
    • Gigabit Ethernet
    • LPCM
    £1,115.40 excl. VAT
    2 in stock

    Product Description

    4x4 HDBaseT matrix switcher with audio matrix.
    Fully compliant with the HDMI 2.0 and HDCP 2.2.
    Supports HDMI resolution up to 4K@60Hz 4:4:4, HDR10.


    Features four mirrored HDMI outputs for four HDBaseT outputs, and the four HDMI outputs support 4K to 1080p down-scaling.

    The four HDBaseT outputs support 24V PoC, allowing the receivers to draw their power from the matrix switcher over the HDBaseT cable.

    Transmits 4K signal to the distance up to 131 feet (40 meters) and 1080p signal to the distance up to 230 feet (70 meters) over a single CATx Ethernet cable.

    Supports audio matrix. Provides four digital SPDIF audio outputs and four analog L+R audio outputs for HDMI input audio de-embedding and HDBaseT output audio de-embedding. Moreover, the four digital SPDIF audio outputs supports ARC audio output from receivers.

    Volume adjustment for analog L+R audio outputs.

    Supports comprehensive EDID management and advanced HDCP handling.

    Controllable via front panel buttons, RS232 local and pass-through, IR local and pass-through, CEC, and TCP/IP (built-in GUI).
    Compatible receiver: VLHDMIMAT4X444-R

    Features

  • 4x4 HDBaseT matrix switcher with audio matrix
  • Fully compliant with the HDMI 2.0 and HDCP 2.2
  • Supports HDMI resolution up to 4K@60Hz 4:4:4, HDR10
  • Features four mirrored HDMI outputs for four HDBaseT outputs, and the four HDMI outputs support 4K to 1080p down-scaling
  • The four HDBaseT outputs support 24V PoC, allowing the receivers to draw their power from the matrix switcher over the HDBaseT cable
  • Transmits 4K signal to the distance up to 40 metres and 1080p signal to the distance up to 70 metres over a single CAT6a Ethernet cable
  • Supports audio matrix. Provides four digital SPDIF audio outputs and four analogue L+R audio outputs for HDMI input audio de-embedding and HDBaseT output audio de-embedding. Moreover, the four digital SPDIF audio outputs supports ARC audio output from receivers
  • Volume adjustment for analogue L+R audio outputs
  • Supports comprehensive EDID management and advanced HDC handling
  • Controllable via front panel buttons, RS232 local and pass-through, IR local and pass-through, CEC, and TCP/IP (built-in GUI)
    •

    Specifications

    Display
    Built-in display
    Yes
    Power
    Power consumption (max)
    65 W
    Features
    Product type
    AV matrix switcher
