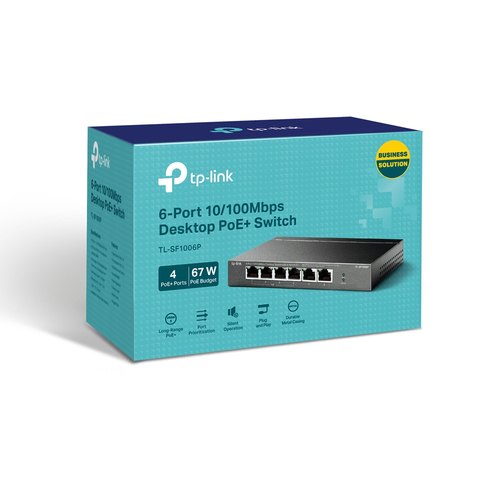

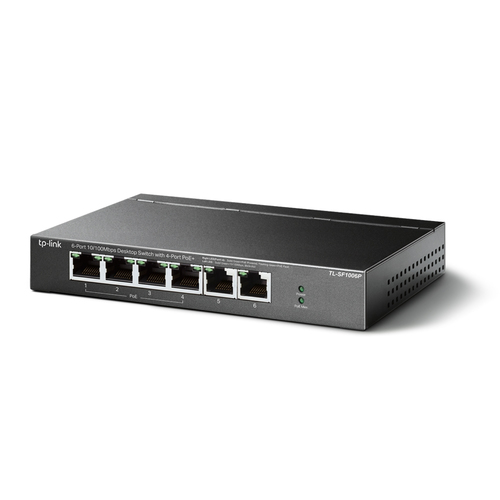

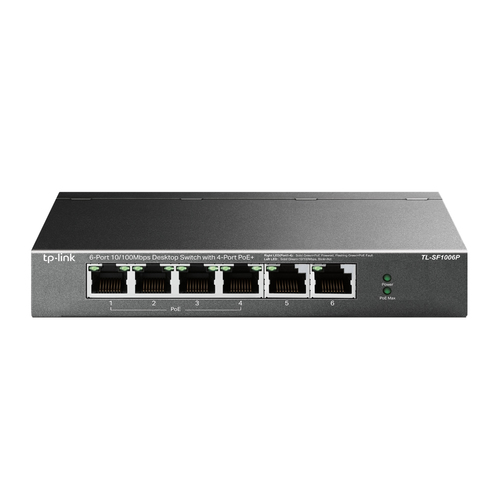

TP-LINK TL-SF1006P



Product Description

Professional High-Power Switch with 4 PoE+ Ports Plug and Play, with PoE Transmission for Surveillance up to 250 m Dedicated 4-Poart PoE+ Switch (67 W Budget) for Numerous Applications Compliance with the 802.3af/at PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more. Ideal for IP Surveillance—Up to 250 m Transmissions With extend mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas. **The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type. Priority Video Quality Guaranteed Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on. Intelligent Power Management When total power consumption exceeds 67 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged. Durable Metal Casing The interior components of TL-SF1006P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1006P delivers switching performance you can depend on.

Specifications

Performance
StackableNo
Auto-negotiationYes
FanlessYes
Technical details
Product colourBlack
StackableNo
Housing materialMetal
Rack mountingNo
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity6
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Network
Cable types supportedCat3,Cat4,Cat5,Cat5e
MAC address auto-learning supportedYes
MAC address auto-aging supportedYes
Networking standardsIEEE 802.3af,IEEE 802.3at
Auto MDI/MDI-XYes
Auto-negotiationYes
Data transmission
MAC address table2000 entries
Switching capacity1.2 Gbit/s
Store-and-forwardYes
Certificates
CertificationFCC, CE, RoHS
Design
Product colourBlack
StackableNo
Housing materialMetal
CertificationFCC, CE, RoHS
Rack mountingNo
Power
Power consumption (max)74 W
Power supply includedYes
Input current1.31 A
DC input voltage53.5 V
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity4
Power over Ethernet (PoE)Yes
Operational conditions
Storage temperature (T-T)-40 - 70 °C
Storage relative humidity (H-H)5 - 90%
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)10 - 90%
Heat dissipation252.34 BTU/h
Weight & dimensions
Width158 mm
Depth101 mm
Height25 mm

TP-LINK TL-SF1006P

Product code: TL-SF1006P
£34.58 ex. VAT
221 in stock
