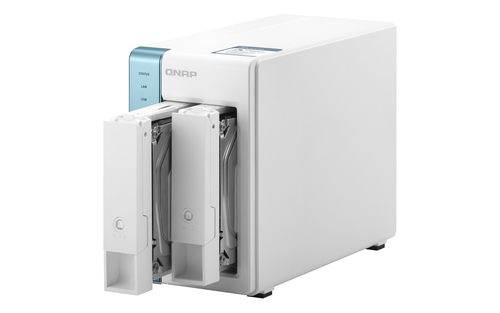

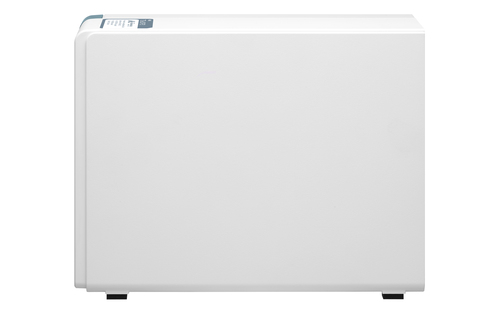

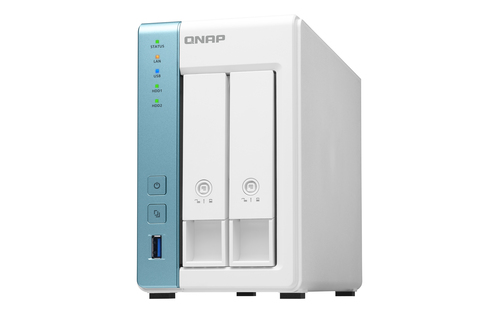

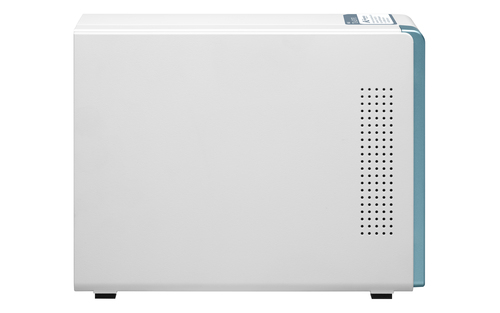

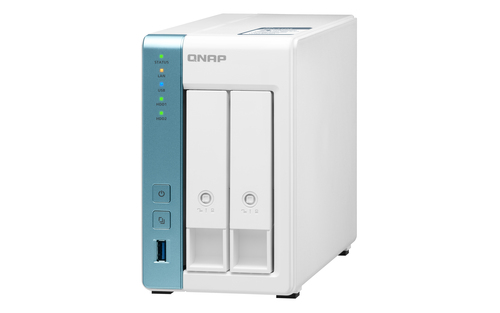

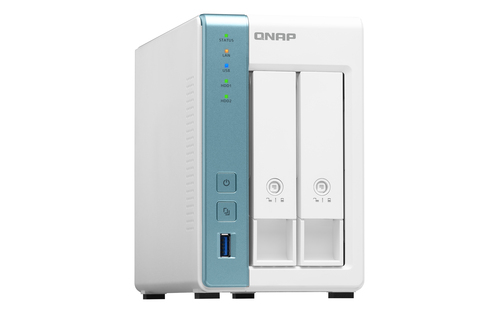

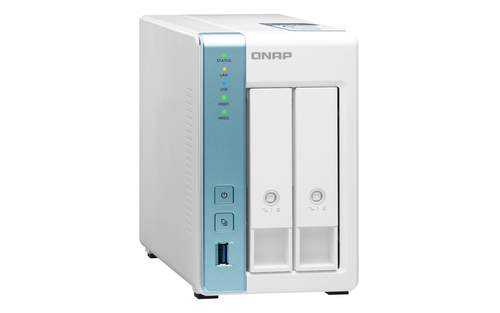

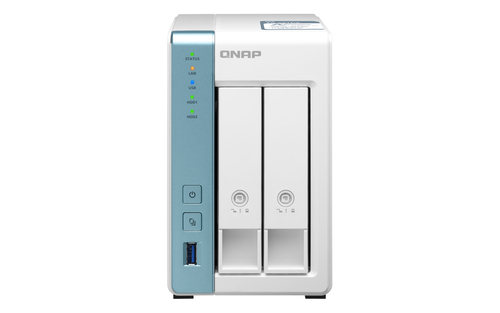

QNAP TS-231P3-2G 2BAY 1.7GHZ QC 2GB



Product Description

Powered by Annapurna Labs Alpine AL-314, quad-core 1.7 GHz processor, 2GB DDR3L RAM, one 1GbE LAN port and one 2.5GbE LAN port, the TS-231P3 features a 2.5GbE RJ45 port, providing up to 2.5 times the speed of regular Gigabit Ethernet and enabling smoother multimedia playback and everyday usage. The TS-231P3 ensures data security by supporting AES 256-bit encryption and various local/remote/cloud backup options – including snapshot protection that allows for files and data to be reverted to previously-recorded states if they are accidentally deleted, modified or affected by malware. Build a faster home network with QNAP The TS-231P3 includes a 1GbE port and a 2.5GbE port to provide a smoother NAS experience and multimedia playback. Additional network connection options from QNAP include USB 3.2 Gen 1 to 5GbE adapters (supports N-BASET/Multi-Gig), QXG 5GbE PCIe cards, and QNAP QSW 10GbE switches. All these options allow users to revolutionize their home network at a cost-effective price. The TS-231P3 features three USB 3.2 Gen 1 port that delivers outstanding multitasking performance. Easy and Secure File Management File Station allows direct management of files stored on the TS-231P3 and in the cloud. Users can easily upload files from their PC, drag/drop files between folders, rename/delete files, and configure file/folder permissions to prevent unauthorized access. Users can also use Microsoft Office Online to directly view/edit Microsoft Office documents stored on the TS-231P3. Confidential/sensitive data can also be encrypted to add extra security. Multi-Point File Backup, Access, and Sync The TS-231P3 supports file sharing protocols (including SMB/CIFS, AFP and NFS) for Windows®, Mac®, and Linux®/UNIX® devices. Coupled with Qsync (a utility that transforms a QNAP NAS into a secure, high-capacity data center for file synchronization) any file uploaded to the TS-231P3 becomes available for all linked devices (such as computers, laptops, and mobile devices). Hybrid Backup Sync helps backup/synchronize data on the TS-231P3 to another QNAP NAS, remote server, or cloud storage for disaster recovery. Additionally, QuDedup technology greatly improves the efficiency of multi-version backup to destination storage, while optimizing storage utilization. You can install the QuDedup Extract Tool on your computer and restore deduplicated files to their normal status. Protect Important Data with Snapshots Snapshots help protect data by fully recording the NAS system state and metadata. With snapshots, users can quickly restore files to previously-recorded states if files are accidentally deleted or modified, or if the system is compromised by malware. QNAP snapshots are block-based and only record modified data. Not only does this save storage space, but also reduces the time required to back up and restore data. Take full control of NAS system status and data security Notification Center consolidates all QTS system events and alerts, providing a single-app solution for notifications. Security Counselor recommends actions and settings to improve the TS-231P3 security. Stay informed at all times The Notification Center offers a single-app solution for QTS system events and alert notifications. This removes the need to configure different app settings and helps users streamline management processes and save time. Comprehensive surveillance solution for 24/7 security Surveillance Station features a user-friendly interface and supports over 3,000 IP cameras. With an expandable IP camera channel licensing system, users can build a comprehensive surveillance system for real-time monitoring, video and audio recording and playback. Budget-conscious users can also save money on cameras by using USB webcams to record footage. Surveillance feeds can be monitored at any time by using the Vmobile app on mobile devices. Extend NAS functionality with Containers and Apps Container Station integrates LXC and Docker® lightweight virtualization technologies, allowing users to host and operate containerized applications directly on the TS-231P3. With many popular and fully-configured applications available from the built-in Docker Hub® (including for automation and multimedia), the TS-231P3 provides users with a vast array of potential functions and application capabilities. The TS-231P3 also features apps for backup/sync, content management, communications, downloading, and entertainment. Every app can be installed from the QTS App Center with a single click. Multiply Your Productivity The app-driven QTS operating system provides solutions for simplifying file backup, management, search, and more. QmailAgent Centrally manage and switch between different email accounts, back up emails to the TS-231P3, and safeguard email security and personal privacy. Notes Station 3 Notes Station 3 provides the advantages of collaborative note-taking with improved productivity to provide higher efficiency for your workgroup. Smart Filing Qfiling automates file organization. Files are automatically archived into folders based on your settings. Full-Text Search Qsirch quickly finds images, music, videos, documents, emails, and other files. Flexible and economical storage expansion QNAP provides easy storage capacity expansion solutions. Here are several ways to expand the TS-231P3 storage to accommodate data growth: Upgrade RAID Capacity Hot-swap lower-capacity drives with larger-capacity drives to expand the TS-231P3. Attach Expansion Enclosure Connect two RAID expansion enclosures (TR-004 or TR-002) or two USB 3.2 Gen 2 JBOD (TL-D800C) and use the QTS Storage & Snapshots Manager to handle NAS capacity expansion. Migrate to a New NAS Install your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations.

Specifications

Storage
Online RAID migrationYes
Online RAID expansionYes
Disk roamingYes
Bad block scanYes
Auto-rebuildYes
Storage drives installedNo
Installed storage drive typeNo
Supported storage drive typesHDD & SSD
Number of storage drives supported2
Storage drive interfaceSerial ATA II, Serial ATA III
Storage drive size2.5/3.5"
Hot-swap drive baysYes
RAID supportYes
Supported file systemsFAT32,HFS+,NTFS,exFAT,ext3,ext4
RAID levels0,1,JBOD
Supported storage drive interfacesSerial ATA II, Serial ATA III
Storage drive sizes supported2.5,3.5"
RAID rebuildYes
Processor
Processor manufacturerAnnapurna Labs
Processor frequency1.7 GHz
Processor familyAnnapurna Labs
Processor modelAL314
Processor cores4
Memory
Internal memory typeDDR3
Internal memory2 GB
Maximum RAM supported8 GB
Memory slots1x SO-DIMM DDR3L
Flash memory512 MB
Memory form factorSO-DIMM
Network
Load balancing systemYes
Link aggregationYes
Dynamic DNS (DDNS)Yes
Ethernet LANYes
Ethernet LAN data rates100,1000,2500 Mbit/s
Wake-on-LAN readyYes
Jumbo frames supportYes
iSCSI supportYes
DHCP serverYes
DHCP clientYes
WLAN adapter supportedYes

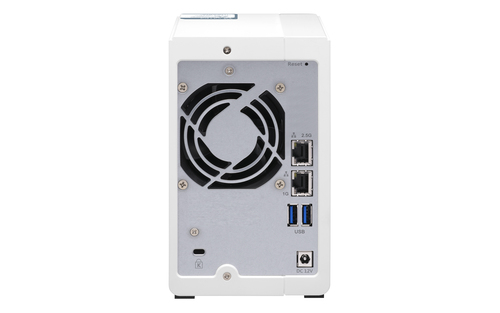

Ports & interfaces
USB portYes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
Ethernet LAN (RJ-45) ports2
Hard drive
RAID supportYes
Supported file systemsFAT32,HFS+,NTFS,exFAT,ext3,ext4
RAID levels0,1,JBOD
Design
Cooling typeActive
Fan diameter12 cm
Drive bay lockingYes
Cable lock slot typeKensington
Product colourWhite
Number of fans1 fan(s)
LED indicatorsHDD, LAN, Power, Status, USB
Chassis typeTower
Cable lock slotYes
Technical details
TypeNAS
Device classHome & Home Office
Backup functionYes
Backup featuresCloud, USB drive, iSCSI LUN
Product colourWhite
Noise level19.2 dB
Multilingual supportYes
LED indicatorsHDD, LAN, Power, Status, USB
Chassis typeTower
BuzzerYes
Number of fans1 fan(s)
Performance
Built-in FTP serverYes
System logYes
Share folder access right managementYes
Share folderAFP, CIFS/SMB, FTP, WebDAV
S.M.A.R.T. supportYes
Password authenticationYes
Hot spareYes
Disk scanYes
Browser supportedApple Safari 7, Google Chrome, Microsoft Internet Explorer 10, Mozilla Firefox
Universal Plug and Play (UPnP)Yes
Built-in BitTorrent clientYes
TypeNAS
Device classHome & Home Office
Backup functionYes
Backup featuresCloud, USB drive, iSCSI LUN
On/off switchYes
Windows operating systems supportedWindows 10,Windows 7,Windows 8
Server operating systems supportedWindows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019
Mac operating systems supportedYes
Linux operating systems supportedYes
Web-based managementYes
Security algorithms256-bit AES,FIPS 140-2,HTTPS,SSH
Reset buttonYes
Operating system version4.4.2
Operating system installedQNAP Turbo System
Noise level19.2 dB
Multilingual supportYes
BuzzerYes
Access Control List (ACL)Yes
Third-party supportYes
SnapshotYes
USB copy functionYes
Cooling
Cooling typeActive
Fan diameter12 cm
Fan voltage12 V
Number of fans1 fan(s)
Security
Drive bay lockingYes
Cable lock slot typeKensington
Security algorithms256-bit AES,FIPS 140-2,HTTPS,SSH
Cable lock slotYes
Access Control List (ACL)Yes
Software
Windows operating systems supportedWindows 10,Windows 7,Windows 8
Server operating systems supportedWindows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019
Mac operating systems supportedYes
Linux operating systems supportedYes
Operating system version4.4.2
Operating system installedQNAP Turbo System
Management features
On/off switchYes
Web-based managementYes
Reset buttonYes
Power
Power consumption (HDD standby)8.46 W
Power supply locationExternal
Power supply unit (PSU) capacity90 W
Fan voltage12 V
AC input voltage100 - 240 V
External power adapterYes
Weight & dimensions
Width102 mm
Depth219 mm
Height161 mm
Weight1.35 kg
Package weight2.39 kg
Packaging content
Number of screws28
External power adapterYes
Cables includedAC, LAN (RJ-45)
System requirements
Windows operating systems supportedWindows 10,Windows 7,Windows 8
Server operating systems supportedWindows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019
Mac operating systems supportedYes
Linux operating systems supportedYes
Operational conditions
Storage temperature (T-T)5 - 95 °C
Operating temperature (T-T)0 - 40 °C
Packaging data
Package weight2.39 kg
Cables includedAC, LAN (RJ-45)
Other features
Digital Living Network Alliance (DLNA) certifiedYes

QNAP TS-231P3-2G 2BAY 1.7GHZ QC 2GB

Product code: TS-231P3-2G
£277.23 ex. VAT
47 in stock
