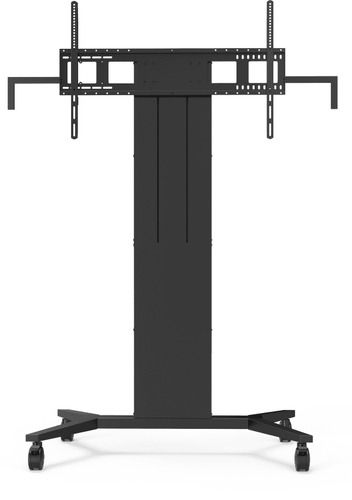

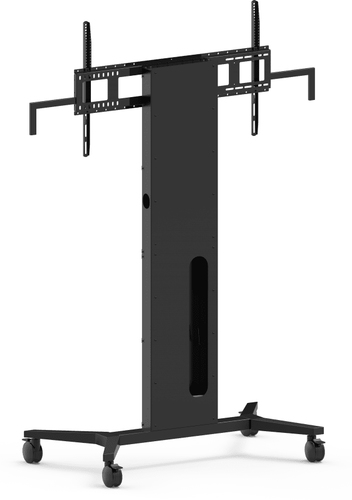

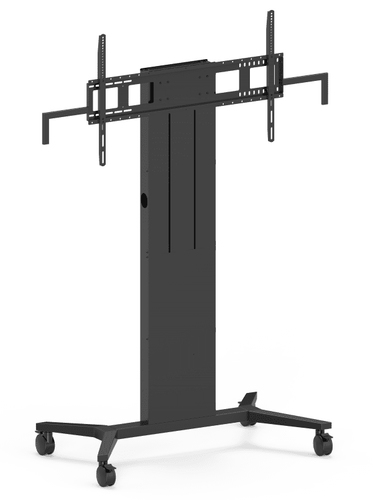

Vision K/ F40 Floorstand - Portable Portable flat panel floor stand Black



Product Description

Vision’s Flat-Panel Mount VFM-F40/WXL is a heavy-duty portable floorstand for large interactive or non-interactive displays. It is super-rigid, powerful, and comes almost completely assembled. Just take it out of the box, assemble and attach the wheel assembly and flat-panel mount. There is no easier floorstand to put together.

Vision’s floorstands transmit the load of the heavy display safely to the floor. This stand is optimised for use in meeting spaces where a high quality fit and finish is essential.

SWL 110kg (242 lbs)

The F40 uses heavy-gauge components to take the weight, and a powerful linear drive pushes up (and pulls down) with 1500 Newtons of force, moving at a relatively quick 19 mm (0.8″) per second.

Regular Freight

This product comes in three boxes: a VFM-F40FRAME which contains the almost completely assembled column. A VFM-W8X6 wall mount, which fixes to the column. And a VFM-FWHEELS wheel assembly. We did this to keep the weight of the carton under 30 kg / 66 lb so normal courier services can be used.

700 mm / 27.5" Motorised Height Adjustment

The central column is a fixed 1.7 metres (5.6 ft) tall, with the moving assembly moving up and down the column 700 mm / 27.5″.

Extremely Tight Tolerances

The moving mechanism uses a roller-slide design with four quality bearings which glide up polished rails. The tolerances of bearings on rail result in zero unwanted movement.

Wireless Control

A remote control is included with simple up and down functions. Users can use the holder, or a magnet sticker to fix the remote to the side of the column out of sight.

Grab Handles

Two handles come with the wheel assembly to help users move the floorstand around without having to grab the display.

Safety Stop

A safety stop is triggered when the display lowers onto hard furnishings. Note soft items may fail to trigger the stop. Care should be taken whenever moving the display down.

Cable Management

Generous cable entry holes on the sides make routing cables quick and easy. There are holes in the rear for cable ties.

Hide Mess

Plenty of space behind the front cover to hide cables, media players, mini PCs, and power distribution boards. The wheel assembly includes a back cover for the column. There is still access to a generous cable hook in the rear.

VESA 800 x 600

This product includes Vision’s heavy-duty VFM-W8X6 wall mount which fits most large-format flat panels from 47-90″. Vision’s larger VFM-W10X6 wall bracket can also fix to this column, or the smaller VFM-W6X4.

Optional Side Shelf

An adjustable outrigger supports a flip-up laptop shelf. It can be positioned at the optimum height to the side of the display. Note: Due into stock late 2019

Optional Video Conference Shelf

This shelf fixes in the centre above or below the display. It accommodates cameras such as Logitech’s Rally, and also Logitech’s Meetup, Yamaha’s VVC-1000, or Barco’s Clickshare CSE-200 base stations.

With VESA100 holes on the vertical section, product’s like iPad enclosures can be fixed above or below the display.

Generous 100 mm / 4" Wheels

Big wheels make it easier to pull along, and reduce vibration. They even have curved corners so they are gentler on your feet.

Shallow Feet

The feet are 650 mm / 25.6″ deep, which means they don’t protrude forward too much. This also makes it much easier to fit through a standard doorway. If a heavier display is to be fitted, or if it will be moved often over rough or sloping surfaces we recommend the VFM-F40/WXL which has longer feet.

Specifications

Mounting
Panel mounting interface300 x 400,300 x 300,400 x 200,400 x 400,400 x 300,400 x 600,500 x 400,500 x 500,600 x 400,600 x 600,600 x 500,800 x 400,800 x 500,800 x 600
Number of displays supported1
Mounting typeFloor
Minimum VESA mount300 x 300 mm
Maximum VESA mount800 x 600 mm
Maximum weight capacity110 kg
Ergonomics
Height adjustmentYes
Height adjustment range0 - 700 mm
Remotely operatedYes
Cord managementYes
Technical details
Remotely operatedYes
Cord managementYes
Mounting typeFloor
Product colourBlack
WheelsYes
Number of wheels4 wheel(s)
MotorizedYes
Design
CertificationRoHS, WEEE, FCC, CE/EMC, CE/LVD, RCM/DOC, RCM/POC
Product colourBlack
Certificates
CertificationRoHS, WEEE, FCC, CE/EMC, CE/LVD, RCM/DOC, RCM/POC
Packaging content
Handheld remote controlYes
Other features
Mounting typeFloor
WheelsYes

Vision K/ F40 Floorstand - Portable Portable flat panel floor stand Black

Product code: VFM-F40/W
£805.31 ex. VAT
78 in stock
