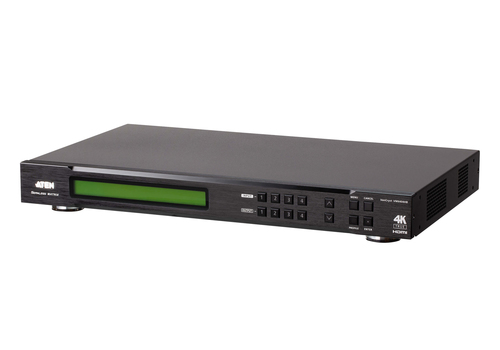

ATEN VM6404HB-AT-E matrix switcher Scaling matrix switcher Built-in display

£2,701.15 excl. VAT

ATEN VM6404HB-AT-E matrix switcher Scaling matrix switcher Built-in display

Product code: VM6404HB-AT-E

ATEN VM6404HB-AT-E
Scaling matrix switcher
18 Gbit/s
600 MHz
4096 x 2160 pixels
4096 x 2160
3840 x 2160
Black

ATEN VM6404HB-AT-E matrix switcher Scaling matrix switcher Built-in display

Product code Alt: VM6404HB-AT-E

Product Description

True 4K Pro AV solutions with High Dynamic Range (HDR) technology is the trend of high-definition video that delivers the ultimate visual experience with exceptional sharp and vibrant video quality. ATEN's VM6404HB True 4K HDMI Matrix Switch with Scaler is compatible with the latest True 4K video resolutions of 4096 x 2160 / 3840 x 2160@60Hz (4:4:4) and HDR, guaranteeing crystal-clear images across four displays.
1x VM6404HB 4 x 4 True 4K HDMI Matrix Switch with Scaler
1x LIN2-418K-E12G Power Cord
1x 2XRT-0106G IR Remote Control
1x 2XRT-0003G IR Receiver
1x KC06-0012-B07G Mounting Kit
1x User Instructions

Features

4 x 4 HDMI input/output connections

Multiple Control Methods – system management via front-panel pushbuttons, IR, RS-232 control, and Ethernet connection for web GUI or Telnet

View and control via ATEN Video Matrix Control App in a swift and agile way

True 4K Resolutions –handles uncompressed video resolutions up to 4096 x 2160 / 3840 x 2160@60Hz (4:4:4)

4K Scaler –features a 4K video scaler to convert input resolutions to the optimum display resolutions

Seamless Switch –features close-to-zero second switching for continuous video streams, real-time switching, and stable signal transmissions

Video Wall –allows you to create custom video wall layouts via intuitive web GUI

True 4K EDID Expert –selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolutions across different screens

FrameSync –prevents image tearing by synchronizing the scaler output frame rate to the input signal frame rate

Audio-enabled – HDMI audio can be extracted to stereo audio

HDMI (3D, Deep color, 4K); HDCP 2.2 compatible

Consumer Electronics Control (CEC) support

ESD protection for HDMI

Rack-mountable (1U design)

Specifications

Display
Built-in display	Yes
Features
Product type	Scaling matrix switcher

£2,701.15 excl. VAT

Out of stock

Product code: VM6404HB-AT-E

ATEN VM6404HB-AT-E
Scaling matrix switcher
18 Gbit/s
600 MHz
4096 x 2160 pixels
4096 x 2160
3840 x 2160
Black
